Suzuki GT250 K L M Bottom Engine Parts

Suzuki GT250 Crank Rebuild Service

Suzuki GT250 Crank Rebuild Service

We Carry Out Crankshaft Rebuilds For The GT250 Here At PJ Motorcycle Engineers.

The Price For A GT250 K L And M Models Crank Rebuild Is £295.00 + VAT

With A Standard Crankshaft Build We Strip All The Components Of The Crankshaft Clean And Inspect For Cracks Then Rebuild With The Following New Parts, Con Rods, Crank Pins, Big End Bearings, Thrust Washers, Small End Bearing, 3 New Main Bearings And 4 New Crank Seals.

The Crank Is Built On A Jig Which Ensures The Crank Is Phased At 180 degrees, The Whole Assembly Is Then Trued By Hand And Is Ready To Be Dropped Into The Crankcase.

Please Note The Crank Shaft Will Be Fitted With The Later GT250 Con Rod Kits That Has A 18mm Small End Eye And Use 14mm Piston Pins (Gudgeon Pins)

Please Get in Touch If You Need This Serivce.Telephone: 01902 307457

Mobile Number For WhatsApp Messaging: 07884274838

Email Us Click Here websales@pjme.co.uk








Suzuki GT250 Con Rod Kit

Suzuki GT250 Con Rod Kit

Suzukit GT250 Con Rod Kit.

This Con Rod Kit Is To Fit The Suzuki GT250 M,A But Are Adaptable To Fit All Models If You Use Pistons With 14mm Piston Pins (Gudgeon Pins).

Kit contains con-rod, crank pin, big end cage, big end rollers, 2 thrust washers and small end bearing

Made In Japan By Long.


A:26.00mm B: 18.00mm C: Con Rod Length 110mm D: 17.00mm E:17.00mm F:20.00mm G:57.00

This Part Will Also Fit The Following Model Bikes.

GT250 A,B,C,K,L,M Models Adaptable With 14mm Piston Pins (Gudgeon Pins)


Price: 43.32 (51.98 Including VAT at 20%)


Quantity:






Suzuki GT250 K L M Crankshaft Bearing Centre

Suzuki GT250 K L M Crankshaft Bearing Centre

Centre Crankshaft Main Bearing To Fit The Suzuki GT250

This Bearing Is To Fit In The Centre Of The Suzuki GT 250 Crank And Fits GT250 K,L & M Models.

Replaces Suzuki Part Number 09262-25009
Price: 27.75 (33.30 Including VAT at 20%)


Quantity:

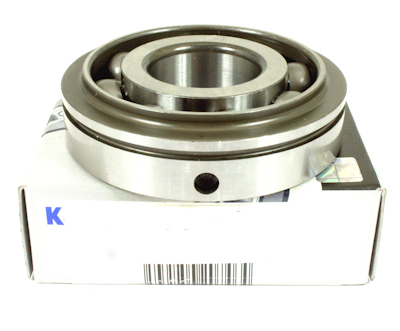

Suzuki GT250 K L M Crankshaft Bearing RH

Suzuki GT250 K L M Crankshaft Bearing RH

Right Hand Crankshaft Main Bearing To Fit The Suzuki GT250

This Bearing Is To Fit In The RH Side (Drive Side) Of The Suzuki GT 250 Crank And Fits GT250 K,L & M Models.

Replaces Suzuki Part Number 09269-25005


Price: 39.75 (47.70 Including VAT at 20%)


Quantity:






Suzuki GT250 K L M Crankshaft Bearing LH

Suzuki GT250 K L M Crankshaft Bearing LH

Left Hand Crankshaft Main Bearing To Fit The Suzuki GT250

This Bearing Is To Fit In The LH Side (Ignition Side) Of The Suzuki GT 250 Crank And Fits GT250 K,L & M Models.

Replaces Suzuki Part Number 09269-25005


Price: 39.75 (47.70 Including VAT at 20%)


Quantity:

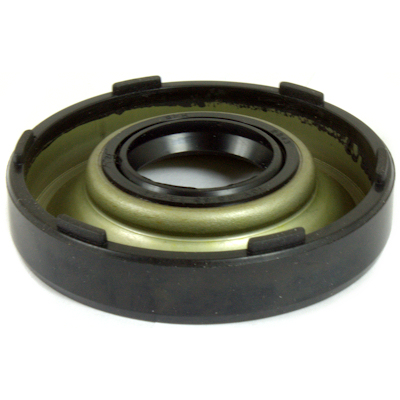

Susuki GT250 K L M Crankshaft Centre Seal

Susuki GT250 K L M Crankshaft Centre Seal

Centre Crankshaft Oil Seal To Fit The Suzuki GT250

This Seal Fits Ether Side Of The Centre Main Bearing Of The Suzuki GT 250 Crank And Fits GT250 K,L & M Models.

Replaces Suzuki Part Numbers 09283-25032 Superceeds To 09283-25017

Require 2 Per Crankshaft


Price: 20.16 (24.19 Including VAT at 20%)


Quantity:






Suzuki GT250 K L M Cranshaft Oil Seal LH

Suzuki GT250 K L M Cranshaft Oil Seal LH

Left-hand Crankshaft Oil Seal To Fit The Suzuki GT250

This Crank Seal Is To Fit In The LH Side (Ignition Side) Of The Suzuki GT 250 Crank And Fits GT250 K,L & M Models.

Replaces Suzuki Part Number 09283-25019
Price: 9.75 (11.70 Including VAT at 20%)


Quantity:




People who bought this item also bought:

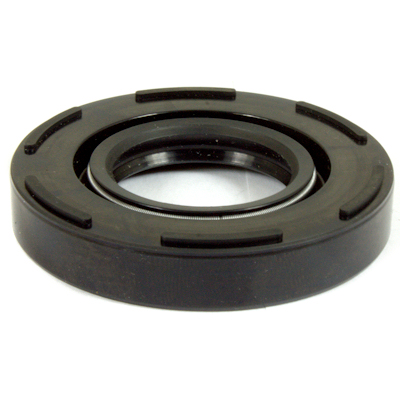

1. Suzuki GT250 K L M Cranshaft Oil Seal RH



Suzuki GT250 K L M Cranshaft Oil Seal RH

Suzuki GT250 K L M Cranshaft Oil Seal RH

Right-hand Crankshaft Oil Seal To Fit The Suzuki GT250

This Crank Seal Is To Fit In The RH Side (Drive Side) Of The Suzuki GT 250 Crank And Fits GT250 K,L & M Models.

Replaces Suzuki Part Number 09283-32001
Price: 9.75 (11.70 Including VAT at 20%)


Quantity:




People who bought this item also bought:
1. Suzuki GT250 K L M Cranshaft Oil Seal LH
