Suzuki GT380 Bottom End Engine Parts



Suzuki GT380 Crank rebuild Service

Suzuki GT380 Crank rebuild Service

We Carry Out Crankshaft Rebuilds For The GT380 Here At PJ Motorcycle Engineers.

The Price For A GT380 Triple Cylinder Crank Rebuild Is £330.47 + VAT.

With A Standard Crankshaft Build We Strip All The Components Of The Crankshaft Clean And Inspect For Cracks Then Rebuild With The Following New Parts, Con Rods, Crank Pins, Big End Bearings, Thrust Washers, Small End Bearing, All Main Bearings, And All Crank Seals.

The Crank Is Built On A Jig Which Ensures The Crank Is Phased Correctly The Whole Assembly Is Then Trued By Hand And Is Ready To Be Dropped Into The Crankcase.

Please Get in Touch If You Need This Serivce.Telephone: 01902 307457

Mobile Number For WhatsApp Messaging: 07884274838

Email Us Click Here websales@pjme.co.uk

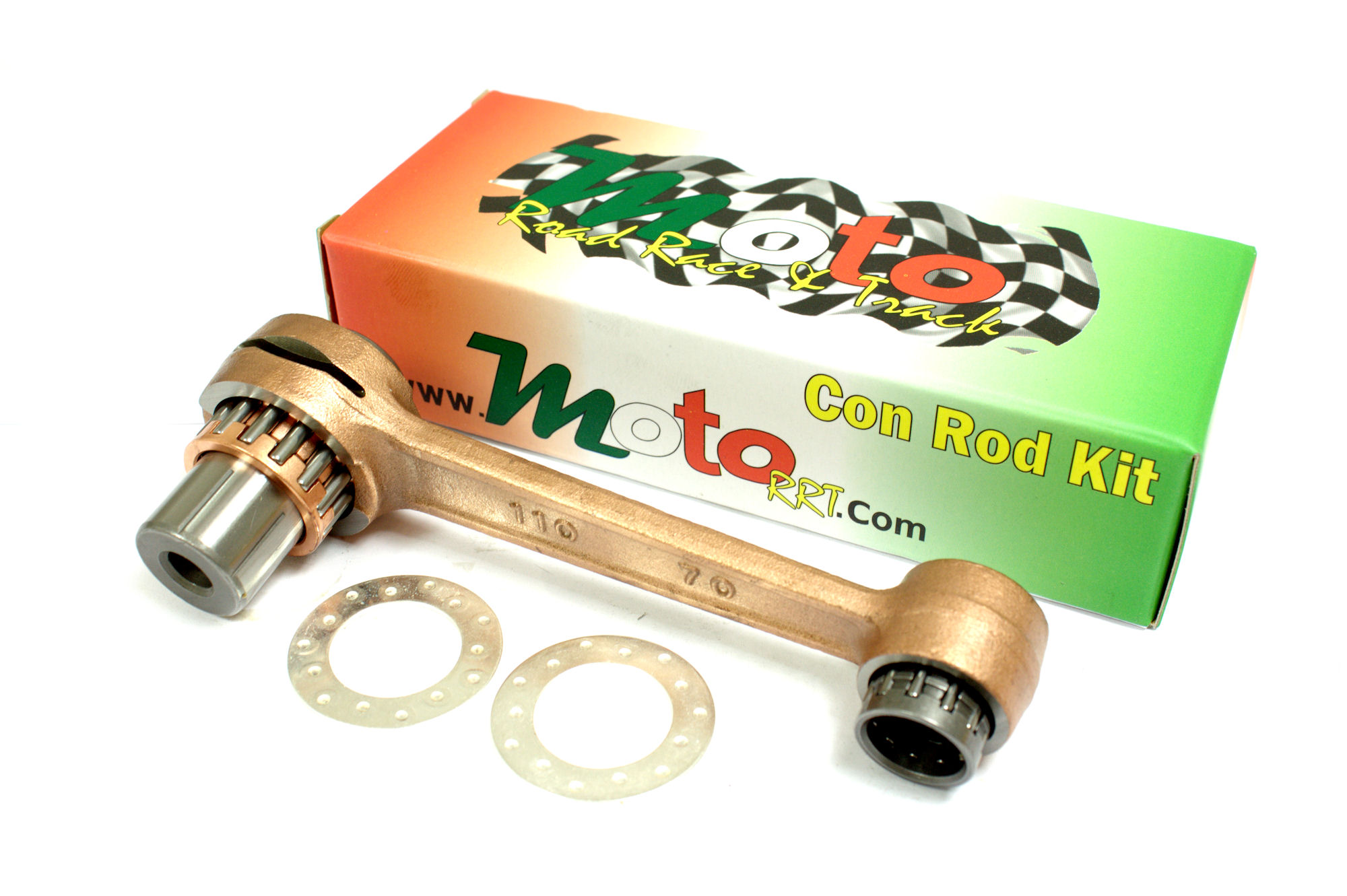

Suzuki GT380 Con Rod Kit

Suzuki GT380 Con Rod Kit

Suzuki GT 380 Con Rod Kit

This Is A Connecting Rod Kit To Fit The GT380 All Years And All Models

Kits Contains Con Rod, Crank Pin, Big End Bearing, 2 Thrust Washers And Small End Bearing.

The Con Rod Kit Is Made In Japan And Replaces Suzuki Part Numbers 1216111001, 0916020010, 0926320020,

Price Is For 1 Con Rod Kit But 3 Are Required Per Crankshaft.


Price: 43.23 (51.88 Including VAT at 20%)


Quantity:






Suzuki GT380 Crank Bearing & Seal Layout Photo
Suzuki GT380 Crank Bearing & Seal Layout Photo





Suzuki GT380 Crank Bearing #15 With Notch

Suzuki GT380 Crank Bearing #15 With Notch

Suzuki GT380 Crankshaft Bearing Made By Koyo In Japan.

Price Is For One Bearing But There Are 4 Of These Type Of Bearings Per GT380 Crankshaft.

Number 15 In The Above Crank Layout Phot

Replaces Suzuki Part Number 0926225030


Price: 16.50 (19.80 Including VAT at 20%)


Quantity:






Suzuki GT380 Crank Bearing #10 Pegged

Suzuki GT380 Crank Bearing #10 Pegged

Suzuki GT380 Crankshaft Bearing Made By Koyo In Japan.

Price Is For One Bearing But There Are 2 Of These Type Of Bearings Per GT 380 Crankshaft.

Number 10 In The Above Crank Layout Phot

Replaces Suzuki Part Number 09262-25077-000


Price: 14.50 (17.40 Including VAT at 20%)


Quantity:

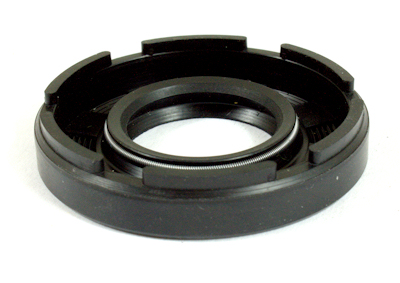

Suzuki GT380 Crank Seal Timming Side #17

Suzuki GT380 Crank Seal Timming Side #17

Suzuki GT380 Timming Side (Ignition Side) Crankshaft Oil Seal.

There Is Only 1 Of These Seals On The GT 380 Crankshaft And It Fits All Years Of The Suzuki GT 380 Crank.

Number 17 In The Above Crank Layout Photo.

Suzuki Part Numbe 0928325047
Price: 13.90 (16.68 Including VAT at 20%)


Quantity:

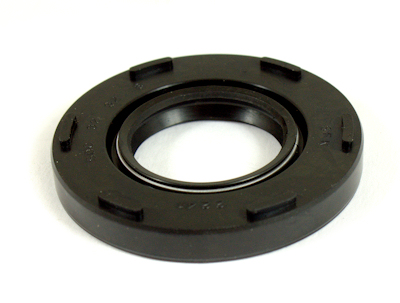

Suzuki GT380 Crank Seal Centre #14

Suzuki GT380 Crank Seal Centre #14

Suzuki GT380 Centre Crankshaft Oil Seal

Price Is For One Seal, But There Are 2 Of These Seals On The GT 380 Crankshaft, Fits All Years Of The Suzuki GT 380

Number 14 In The Above Crank Layout Photo.

Replaces Suzuki Part Number 09289-25005
Price: 11.25 (13.50 Including VAT at 20%)


Quantity:






Suzuki GT380 Crank Seal Drive Side #16

Suzuki GT380 Crank Seal Drive Side #16

Suzuki GT380 Drive Side (Clutch Side) Crankshaft Oil Seal.

There Is Only 1 Of These Seals On The GT 380 Crankshaft And It Fits All Years Of The Suzuki GT 380 Crank.

Number 16 In The Above Crank Layout Photo.

Replaces Suzuki Part Numbers 09283-32031, 09289-32002
Price: 16.55 (19.86 Including VAT at 20%)


Quantity:

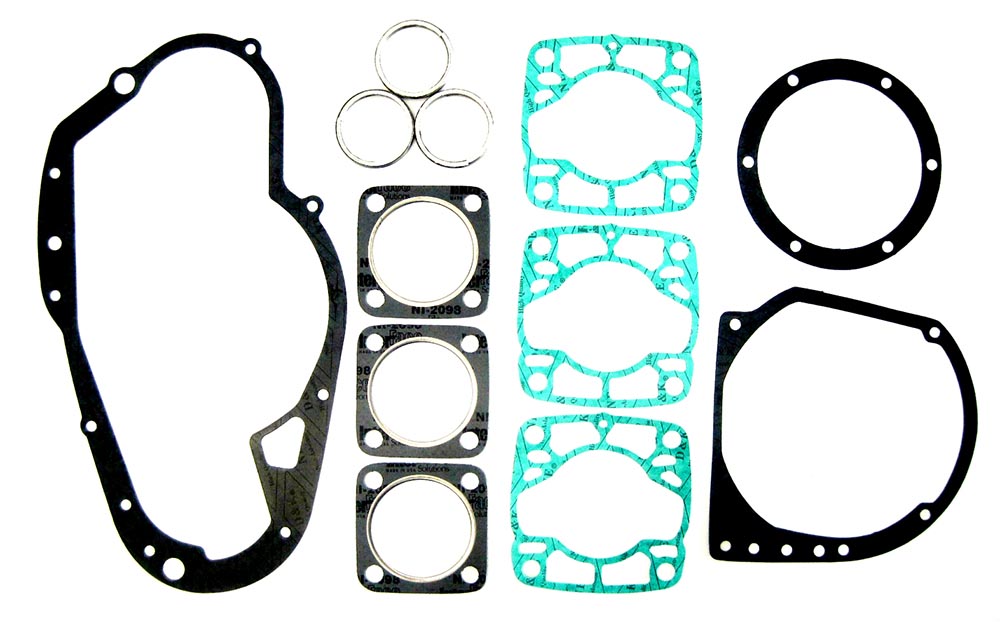

Suzuki GT380 Full Gasket Set

Suzuki GT380 Full Gasket Set

Suzuki GT380 Full Gasket Kit, Fits All Years Of The GT 380

Kit Includes

3 Base Gaskets

3 Head Gasket

3 Ex Orings

1 Clutch Cover Gasket

1 Ing Cover Gasket

1 Ing Inspection Cover Gasket
Price: 22.58 (27.10 Including VAT at 20%)



Quantity:
