Suzuki RG500 Bottom End Engine Parts



Suzuki RG500 Crankshaft Rebuild Service

Suzuki RG500 Crankshaft Rebuild Service

We Can Rebuild Suzuki RG500 Crankshafts Here At PJME

The Price For A Crank Rebuild Is £284.85 + VAT Per Crankshaft.

For This We Replace Both Con Rod Kits (Rods, Big End Bearings And Small End Bearings) 4 Main Bearings And 2 Crank Seals.

The Big Issue With The Suzuki RG 500 Crankshaft Is The Inner Webs Have The Crank Pin Built Into It "Integral Web And Pin" If This Is Worn It Will Have To Be Replaced These Are £138.80 Each + Vat

Please Get in Touch If You Need This Serivce.








Suzuki RG500 Con Rod Kit

Suzuki RG500 Con Rod Kit

Replacement Con Rod Kit To Fit The Suzuki RG500 Fits All Years Of The Suzuki RG 500

You Get 1 Con Rod, 1 Big End Bearing, 1 Crank Pin, And 1 Small End Bearings.

Made In Japan By Long (Long Alos Make Con Rods For Prox, Suzuki, Yamaha ETC)

Price Is Per Con Rod

Replaces Suzuki Part Numbers 12161-21A00-000, 0926322060 And 0926314022
Price: 37.21 (44.65 Including VAT at 20%)


Quantity:




People who bought this item also bought:
1. Suzuki RG500 Centre Crank Seal
2. Suzuki RG500 Inner Crank Bearing LH
3. Suzuki RG500 Inner Crank Bearing RH With Notch

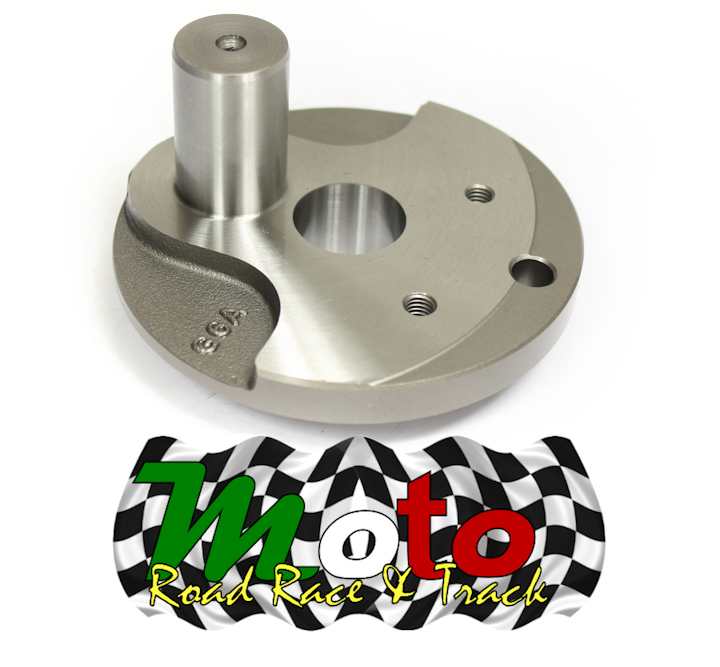

Suzuki RG500 Flywheel Web And Pin

Suzuki RG500 Flywheel Web And Pin

This Is A Suzuki Rg 500 Crank Web With Integral Crank Pin To Fit All Years Of The Rg500

These Are Often Required When The Crank Shaft Needs Rebuilding.

Price Is For One But 2 Are Required Per Crankshaft And There Are 2 Crankshafts In The Rg500 So If You Are Doing A Full Rebuild You Will Require 4 In Total

Suzuki Part Number 12236-20A02-000
Price: 138.30 (165.96 Including VAT at 20%)


Quantity:






Suzuki RG500 Outer Crankshaft Bearing

Suzuki RG500 Outer Crankshaft Bearing

Suzuki RG 500 Outer Crankshaft Bearing Made By Koyo In Japan.

Price Is For One Bearing But 2 Are Required Per Crankshaft And There Are 2 Crankshafts In The Rg500 So If You Are Doing A Full Rebuild You Will Require 4 In Total

Replaces Suzuki Part Number 09262-25077-000
Price: 14.50 (17.40 Including VAT at 20%)


Quantity:




People who bought this item also bought:
1. Suzuki RG500 Centre Crank Seal
2. Suzuki RG500 Inner Crank Bearing LH
3. Suzuki RG500 Inner Crank Bearing RH With Notch



Suzuki RG500 Inner Crank Bearing RH With Notch

Suzuki RG500 Inner Crank Bearing RH With Notch

Suzuki RG 500 Inner RH Crankshaft Bearing Made By Koyo In Japan.

Price Is For One Bearing And There Is Only 1 Of These Type Of Bearings Per RG500 Crankshaft, However If you Are Carrying Out A Rebuild On Both Cranks You Will Require Quaintly 2.

Replaces Suzuki Part Number 0926225077
Price: 16.50 (19.80 Including VAT at 20%)


Quantity:




People who bought this item also bought:
1. Suzuki RG500 Centre Crank Seal
2. Suzuki RG500 Inner Crank Bearing LH
3. Suzuki RG500 Outer Crankshaft Bearing



Suzuki RG500 Inner Crank Bearing LH

Suzuki RG500 Inner Crank Bearing LH

Suzuki RG 500 Inner LH Crankshaft Bearing Made By Koyo In Japan.

Price Is For One Bearing And There Is Only 1 Of These Type Of Bearings Per RG500 Crankshaft, However If you Are Carrying Out A Rebuild On Both Cranks You Will Require Quaintly 2.

Replaces Suzuki Part Number 09262-25077-000
Price: 14.50 (17.40 Including VAT at 20%)


Quantity:




People who bought this item also bought:
1. Suzuki RG500 Centre Crank Seal
2. Suzuki RG500 Inner Crank Bearing RH With Notch
3. Suzuki RG500 Outer Crankshaft Bearing



Suzuki RG500 Centre Crank Seal

Suzuki RG500 Centre Crank Seal

Inner Centre Crankshaft Oil Seal To Fit The Suzuki RG500.

Made In Japan These Seals Fit Between The Inner Main Bearings On The Suzuki RG 500.

Price Is For 1 Seal But 2 Are Required Per Crankshaft.

Replaces Suzuki Part Number 09283-32031-000
Price: 11.03 (13.24 Including VAT at 20%)


Quantity:




People who bought this item also bought:
1. Suzuki RG500 Inner Crank Bearing LH
2. Suzuki RG500 Inner Crank Bearing RH With Notch
3. Suzuki RG500 Outer Crankshaft Bearing

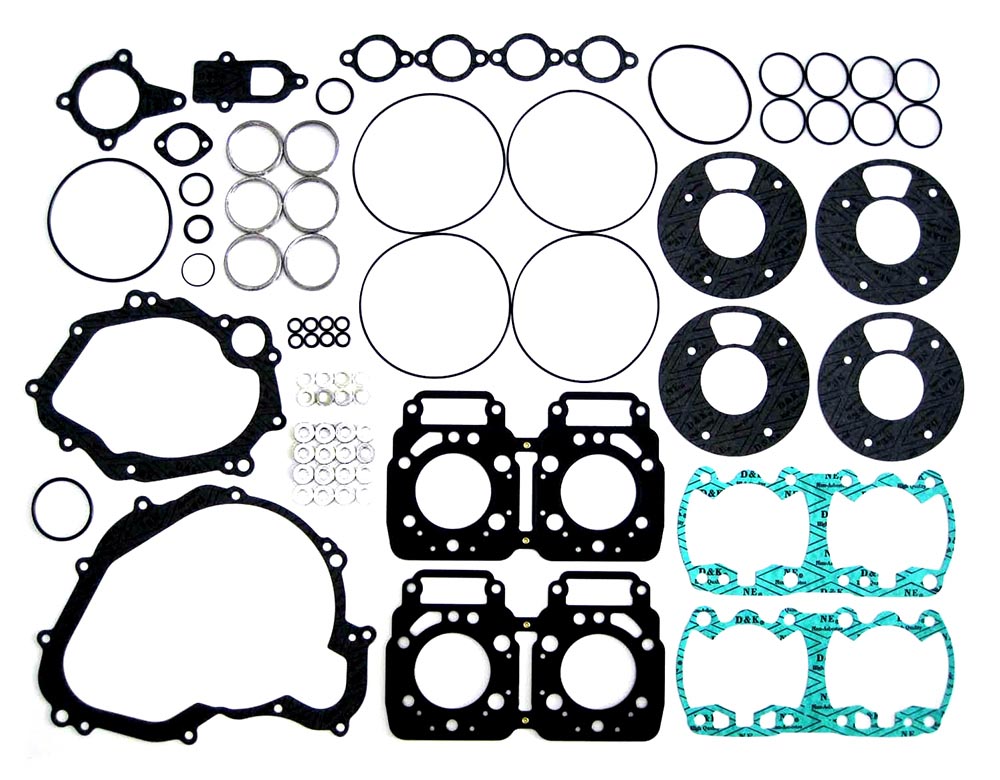

Suzuki RG500 Full Gasket Kit

Suzuki RG500 Full Gasket Kit

Full Gasket Kit To Fit The Suzuki RG500

This Gasket Set Has all the gaskets required to carryout out a full engine rebuild.

Made In Italy By Athena

Click For A Bigger Photo
Price: 120.52 (144.62 Including VAT at 20%)



Quantity:






Suzuki RG500 Big End Bearing

Suzuki RG500 Big End Bearing

Replacement Big End Bearing For The Suzuki RG500, Fits All Models and years Of The RG 500 Models.

The Big End Bearing Is A Silver Plated Flat Bar Race Type.

Replaces Suzuki Part Numbers 0926322060 & 09263-22047-0C0

Price Is For 1 Big End Bearing
Price: 18.75 (22.50 Including VAT at 20%)


Quantity:

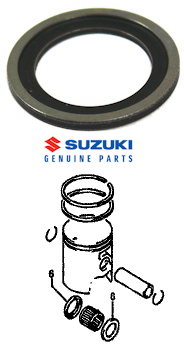

Suzuki RG500 Piston Thrust Washer

Suzuki RG500 Piston Thrust Washer

Suzuki RG500 Piston Thrust Washer.

These Thrust Washers Fit Either Side Of The Piston On The Suzuki RG 500

These Are Often Missed Out When The Piston Is Changed Which Causes The Con Rod To Rub The Side Of The Crankshaft.

NOTE PRICE IS FOR JUST 1 However 2 Are Required

Genuine Suzuki Part # 0916914007


Price: 4.50 (5.40 Including VAT at 20%)


Quantity:
