Yamaha DT125R Engine Parts Top End

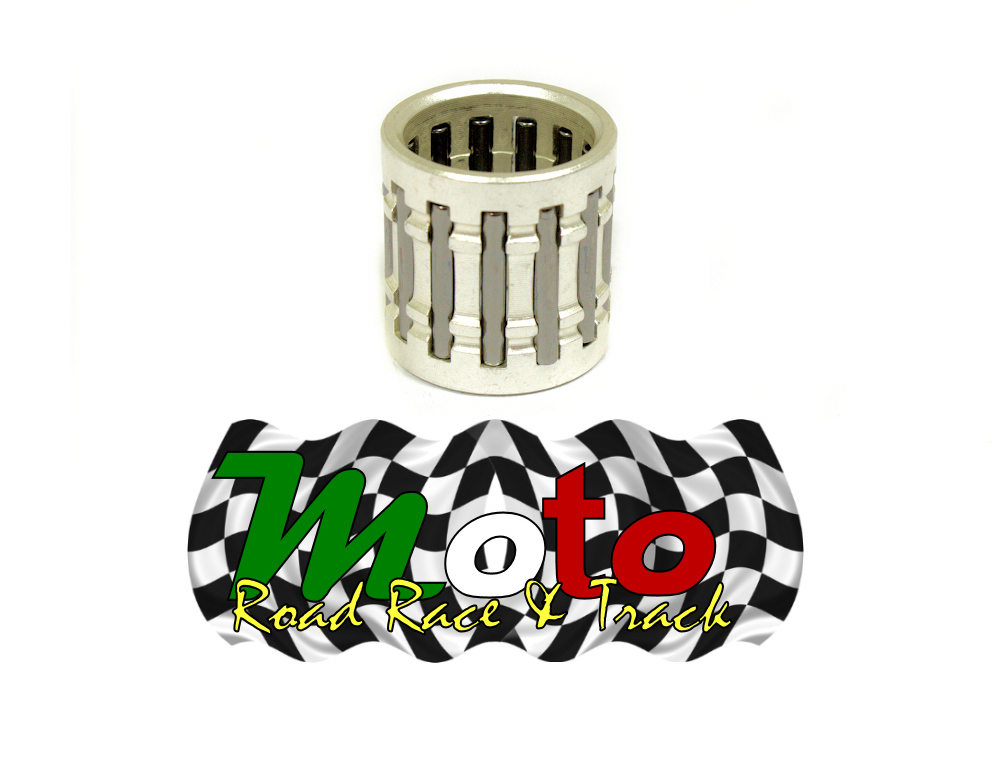

Yamaha DT125R Small End Bearing

Yamaha DT125R Small End Bearing

Small End Bearing To Fit The Yamaha DT125R

The Small end bearings are made in Japan by the same manufacture that makes them for Yamaha So the quality is guaranteed.

Std Size Small End Bearing 19.50mm Wide Will Fit Mitaka, Vertex and Wossner Psitons
Price: 4.50 (5.40 Including VAT at 20%)



Quantity:




People who bought this item also bought:
1. Yamaha DT125R Piston Kit Mitaka Kit Japan
2. Yamaha DT125R Top End Gasket Kit Athena

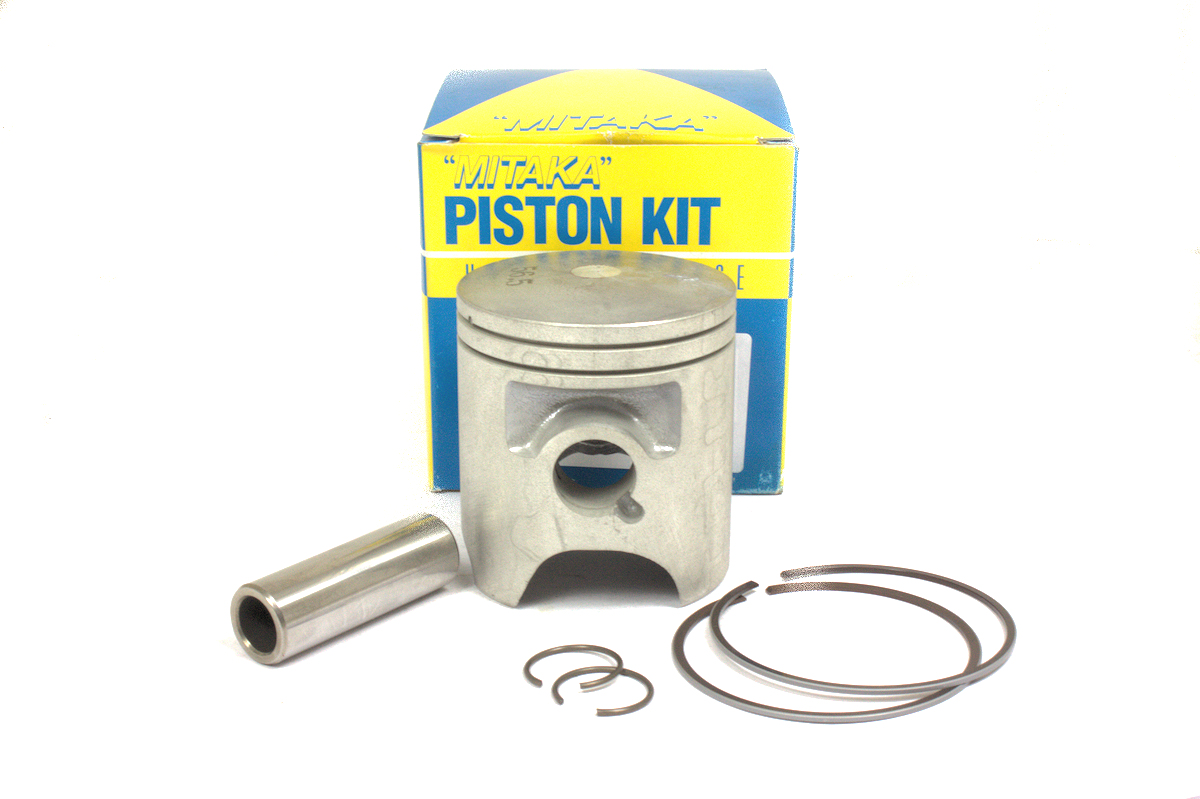

Yamaha DT125R Piston Kit Mitaka Kit Japan

Yamaha DT125R Piston Kit Mitaka Kit Japan

Mitaka Piston Kit To Fit The Yamaha DT125R All Years

Piston kit contains piston, piston rings, gudgeon pin and 2 circlips.

This piston kit is to fit the Yamaha DT125R code on the cylinder should be 3MB 00

The Pistons We Supply Are The High Quality Made In Japan Mitaka Pistons. Please Note Other Companies List And Sell The Cheaper Made In Taiwan Mitaka Pistons, Please Check Before Comparing Prices.

The Engine Fitted To Yamaha DT125R Has A Std Bore Size Of 56.00mm. The Cylinder Is Fitted With A Cast iron Sleeve From The Factory And IS Re-boreable So Please Check Your Size Before Ordering The Piston.

You Can Go All The Way Up To 59.15mm But After Around 57.00mm The Cylinder Head Gasket And Cylinder Head May Need To Be Opened Out To Avoid The Piston Hitting Them.


Options

Please Choose Size



Price: 44.10 (52.92 Including VAT at 20%)



Quantity:




People who bought this item also bought:
1. Yamaha DT125R Small End Bearing
2. Yamaha DT125R Top End Gasket Kit Athena

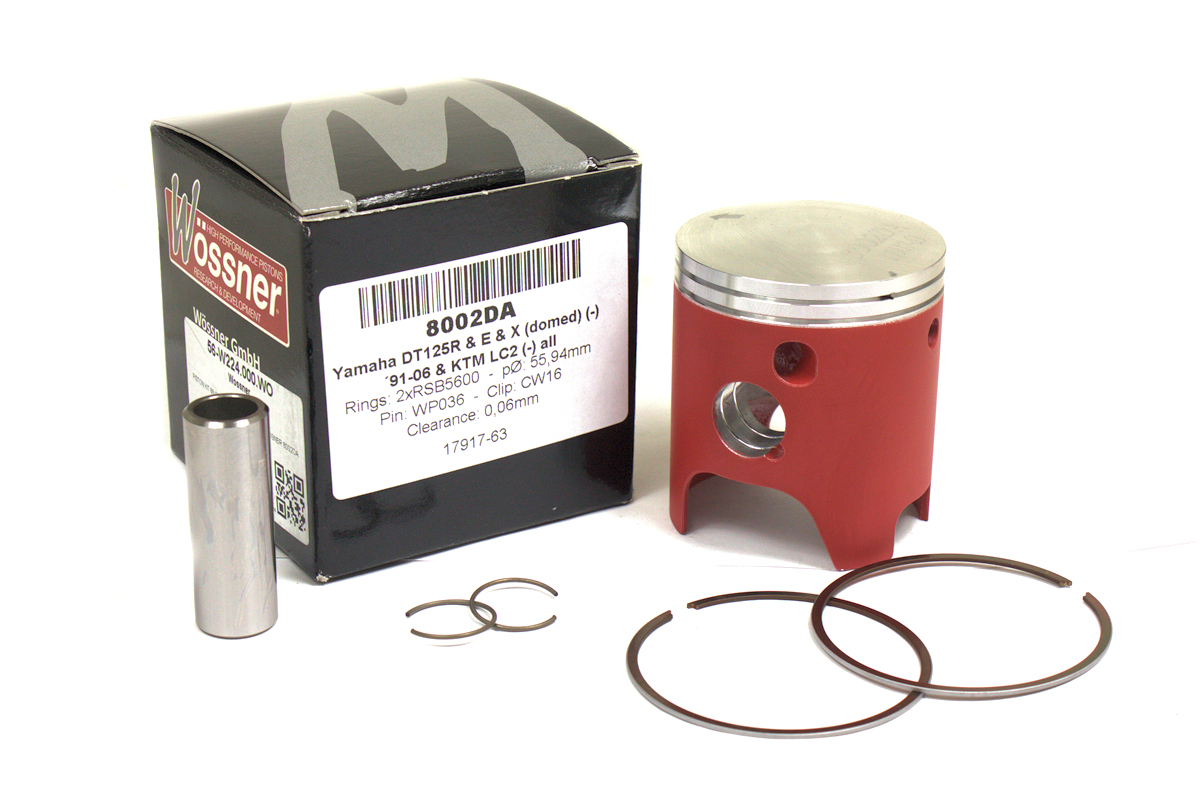

Yamaha DT125R Piston Kit Wossner

Yamaha DT125R Piston Kit Wossner

Wossner Piston Kit To Fit The Yamaha DT125R All Years

Piston kit contains piston, piston rings, gudgeon pin and 2 circlips.

This piston kit is to fit the Yamaha DT125R code on the cylinder should be 3MB 00

You Can Go All The Way Up To 59.00mm But After Around 57.00mm The Cylinder Head Gasket And Cylinder Head May Need To Be Opened Out To Avoid The Piston Hitting Them.


Options

Choices



Price: 80.41 (96.49 Including VAT at 20%)



Quantity:






Customer Reviews

  Excellent quality piston kit   Great performance+reliability   (15/08/2019) Carl - Kent



Yamaha DT125R Vertex Piston Kit

Yamaha DT125R Vertex Piston Kit

Vertex Piston Kit To Fit The Yamaha DT125R All Years

Piston kit contains piston, piston rings, gudgeon pin and 2 circlips.

This piston kit is to fit the Yamaha DT125R code on the cylinder should be 3MB 00

This Piston Requires a 17.50mm Wide Small End Bearing


Options

Please Choose Size



Price: 69.15 (82.98 Including VAT at 20%)



Quantity:






Customer Reviews

    100% recommend   (16/07/2014) Michael - Jersey Channel Island


  very good    (06/11/2012) steve - gl3 3rp



Yamaha DT125R Namura Piston Kit

Yamaha DT125R Namura Piston Kit

Yamaha DT125 R Namura Piston Kit.

This is a Namura Piston Kit To Fit The Yamaha DT125R DT 125R Cylinder.

Piston kit contains piston, piston rings, gudgeon pin and 2 circlips.

This piston kit is to fit the Yamaha DT125R code on the cylinder should be 3MB 00

Namura Pistons Are Made In Taiwan


Options

Please Choose Size



Price: 51.54 (61.85 Including VAT at 20%)





Quantity:






Yamaha DT125R Big Bore Kit

Yamaha DT125R Big Bore Kit

Big Bore Kit To Fit The Yamaha DT125R

This is An Athena 170cc Kit Comes with

:Cylinder 65.00mm Bore

:Forged Piston Kit

:Cylinderhead Shell

:Cylinder Dome

:New Power Valve

:All The Gaskets That you Need To Fit

:Studs,Nuts,Bolts ETC

You will need to Re Jet Your Carburettor.

YOU SHOULD ALSO KNOW THAT ATHENA OFFER NO WARRANTY WITH THERE PARTS AS THEY ARE FOR "COMPETITION" USE ONLY" SO PLEASE BEAR THIS IN MIND WHEN MAKING YOUR PURCHASE

Note There Is No Small End In The Kit,But The Std Size Small End Fits


Price: 453.00 (543.60 Including VAT at 20%)



Quantity:






Customer Reviews

  Worth it!  I hav'nt been out for a ride with it on yet, but sounds awsome :D and i cant wait to finish my bike, altho didn't come with any instructions, but was'nt hard to fit anyway :)   (22/08/2012) Marcus - East Anglia



Yamaha DT125R Athena Big Bore Kit Top Gasket Set

Yamaha DT125R Athena Big Bore Kit Top Gasket Set

Replacement Top Gasket Kit For The Yamaha DT125R Athena Big Bore Kit

This Kit Is Made In Italy By Athena And Is A Better Quality One Than The Budget One We Sell Which Is Made In Taiwan. "Why is it better i hear you say" Well the gaskets are made from the same materiel & in the same factory as the original yamaha ones, the gasket material is better than the Taiwanese one and fits much nicer.

Made In Italy


Price: 32.98 (39.58 Including VAT at 20%)



Quantity:






Yamaha DT125R Athena Big Bore Replacement Piston Kit

Yamaha DT125R Athena Big Bore Replacement Piston Kit

Replacement Piston Kit For The Yamaha DT125R Athena Big Bore Kit

This Kit Is Made In Italy By Athena

Made In Italy


Price: 105.00 (126.00 Including VAT at 20%)



Quantity:






Yamaha DT125R Genuine Small End Bearing

Yamaha DT125R Genuine Small End Bearing

Small End Bearing To Fit The Yamaha DT 125R This Is A Genuine Yamaha Part.

The Size Is 16-21-19.5

This Relates To The Gudgeon Pin Or Wrist Pin Being 16mm OD, The Inside Of The Connecting Rod Being 20mm And The Bearing Being 19.50mm Wide.

Genuine Yamaha Part Number 93310-316D5 Replaces Part Number 93310-316H7


Price: 22.65 (27.18 Including VAT at 20%)


Quantity:






Yamaha DT125R Small End Bearing For Vertex Piston

Yamaha DT125R Small End Bearing For Vertex Piston

Small End Bearing To Fit The Yamaha DT125R With The Vertex Piston Kit

The Small end bearings are made in Japan by the same manufacture that makes them for Yamaha So the quality is guaranteed.

Width Of Small End Bearing Is 17.50mm
Price: 6.75 (8.10 Including VAT at 20%)



Quantity:






Yamaha DT125R Top End Gasket Kit Athena

Yamaha DT125R Top End Gasket Kit Athena

Top Gasket Kit For The Yamaha DT125R 1988 Onwards

This Kit Is Made In Italy By Athena And Is A Better Quality One Than The Budget One We Sell Which Is Made In Taiwan. "Why is it better i hear you say" Well the gaskets are made from the same materiel & in the same factory as the original yamaha ones, the gasket material is better than the Taiwanese one and fits much nicer.

Made In Italy

Bigger Photo Here
Price: 16.99 (20.39 Including VAT at 20%)



Quantity:




People who bought this item also bought:
1. Yamaha DT125 R Power Valve Dowel
2. Yamaha Power Valve Service Kit DT125R, TZR125 Etc
3. Yamaha DT125R Small End Bearing



Yamaha DT125R Top End Gasket Set Budget

Yamaha DT125R Top End Gasket Set Budget

Top End Gasket Kit To Fit The Yamaha DT125R

Quality top end gasket kits all the gaskets required to strip and rebuild your cylinder/ top end.

This gasket kit is to fit the Yamaha DT125R code on the cylinder should be 3MB 00

Made In Taiwan


Price: 11.50 (13.80 Including VAT at 20%)



Quantity:






Yamaha DT125R Thermostat Housing Gasket

Yamaha DT125R Thermostat Housing Gasket

Genuine Yamaha DT125R Thermostat Housing Gasket

We Sell This Gasket On Its Own As It Does Not Come In Any Of The Top End Gasket Kits.

Replaces Yamaha Part Number 3BN-124-10


Price: 1.95 (2.34 Including VAT at 20%)



Quantity:






Yamaha DT125R Thermostat Housing O-Ring

Yamaha DT125R Thermostat Housing O-Ring

Thermostat O-ring To Fit The Yamaha DT125R All Years.

This o-ring Fits Under The Thermostat On The DT 125R All Models

Yamaha Part Number 93210-27778


Price: 2.99 (3.59 Including VAT at 20%)





Quantity:






Yamaha DT125R Thermostat

Yamaha DT125R Thermostat

Replacement Thermostat To Fit The Yamaha DT 125R All Years And All Models

Genuine Yamaha Part 34X-12411-00
Price: 17.99 (21.59 Including VAT at 20%)





Quantity:




People who bought this item also bought:
1. Yamaha DT125R Head Gasket Athena



Yamaha DT125R Piston C-Clips

Yamaha DT125R Piston C-Clips

Pair Of C-Clips For The Yamaha DT125R Piston (price is for a pair IE 2 c-clips)
Price: 1.90 (2.28 Including VAT at 20%)



Quantity:






Yamaha DT125R Gudgeon Pin

Yamaha DT125R Gudgeon Pin

Replacement G-pin For The Yamaha DT125R Piston Kit.

Also Know As Piston Pin Wrist Pin

Fits All Brands Of Piston Kit, Vertex, Mitaka, Wossner, Genuine Etc.

Replaces Yamaha Part Number 3MB-11633-00

Made in Japan


Price: 4.40 (5.28 Including VAT at 20%)



Quantity:






Yamaha DT125 R Piston Ring Set

Yamaha DT125 R Piston Ring Set

Spare Set Of Piston Rings To Fit The Yamaha DT125R All Years.

Price Is For A Pair Of Rings IE 2 Rings.

These Rings Are Designed To Fit The Mitaka Piston Kits And The Original Yamaha DT 125R Piston

They May Fit Other Brands Please Confirm With The Sizes Below.

Top Ring: Half Key Stone Type 1.20mm Thick.

Bottom Ring: Plane Type 1.20mm Thick With Expander Ring.

Made In Japan By Riken.

Replaces These Yamaha Part Numbers 4FL-11603-00 4FL-11604-00 4FL-11605-00 1KT-11610-00 47X-11610-00


Options

Please Chose Size



Price: 14.50 (17.40 Including VAT at 20%)



Quantity:






Yamaha DT125R Cylinder Head Stud

Yamaha DT125R Cylinder Head Stud

Cylinder Head Stud To Fit The Yamaha DT125R

Fits All Years Of The DT 125R

Price Is For 1 Stud However 5 Are Required Per Cylinder.

Yamaha Part Number 90116-08394


Price: 4.08 (4.90 Including VAT at 20%)





Quantity:






Yamaha DT125R Cylinder Base Dowel

Yamaha DT125R Cylinder Base Dowel

Cylinder Base Dowel To Fit The Yamaha DT125R All Years And All Models

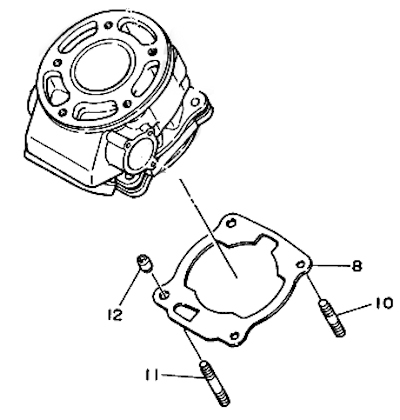

# 12 In The Drawing

10.00mm Outside Diameter 13.60mm Long

Yamaha Part Number 99530-10114

Price Is For 1 Dowel But 2 Are Required Per Engine


Price: 1.79 (2.15 Including VAT at 20%)





Quantity:






Yamaha DT125R Cylinder Base Stud #10

Yamaha DT125R Cylinder Base Stud #10

Cylinder Base Stud To Fit The Yamaha DT125R All Years And All Models

# 10 In The Drawing

This Stud Screws Into The LH Crankcase And Is 51mm Long.

Yamaha Part Number 90116-08394

Price Is For 1 Stud But 2 Are Required Per Engine


Price: 4.08 (4.90 Including VAT at 20%)





Quantity:






Yamaha DT125R Cylinder Base Stud #11

Yamaha DT125R Cylinder Base Stud #11

Cylinder Base Stud To Fit The Yamaha DT125R All Years And All Models

# 11 In The Drawing

This Stud Screws Into The RH Crankcase And Is 61mm Long, It Fits In With The Dowel.

Yamaha Part Number 90116-08392

Price Is For 1 Stud But 2 Are Required Per Engine

90116-08392

61mm long
Price: 4.08 (4.90 Including VAT at 20%)





Quantity:






Yamaha DT125R Cylinder Exhaust Stud

Yamaha DT125R Cylinder Exhaust Stud

Yamaha DT 125R Cylinder Exhaust Stud Fits All Years Of The DT 125 R

Genuine Yamaha Part Number 90116-08042
Price: 3.45 (4.14 Including VAT at 20%)





Quantity:






Yamaha DT125R Head Gasket

Yamaha DT125R Head Gasket

Genuine Yamaha DT125R Head Gasket

Yamaha Part Number 3BN1118102
Price: 29.55 (35.46 Including VAT at 20%)


Quantity:






Yamaha DT125R Head Gasket Athena

Yamaha DT125R Head Gasket Athena

Yamaha DT125R Athena Quality Head Gasket

Fits All Years Of The DT 125R

Replaces Yamaha Part Number 3BN1118102

Athena Part Number
Price: 9.60 (11.52 Including VAT at 20%)



Quantity:




People who bought this item also bought:
1. Yamaha DT125R Thermostat
2. Stick On L Plate
3. Yamaha DT125R Gear Change Shaft Oil Seal



Yamaha DT125R Base Gasket Athena

Yamaha DT125R Base Gasket Athena

Replacement Base Gasket To Fit The DT125R DT125RE DT125X All years.

Made By Athena In Italy

Replaces Yamaha Part Number 4FU 1135100


Price: 4.30 (5.16 Including VAT at 20%)



Quantity:






Yamaha DT125R Genuine Base Gasket

Yamaha DT125R Genuine Base Gasket

Genuine Yamaha DT125R Base Gasket

Yamaha Part Number 4FU1135100
Price: 18.99 (22.79 Including VAT at 20%)





Quantity:






Yamaha DT125R Reed Valve Gasket

Yamaha DT125R Reed Valve Gasket

Reed Valve Gasket To Fit The Yamaha DT125R All Years R/RE/X

Qualty Part Made By Athena

Replaces Yamaha Part Numbers 1KT1362101 1KT1362100
Price: 2.50 (3.00 Including VAT at 20%)


Quantity:






Yamaha DT125R Power Valve Service Kit

Yamaha DT125R Power Valve Service Kit

Yamaha DT125R Power Valve Service Kit, Fits All Years Of The DT125R, DT125X, DT125RE Etc

If You Are Getting Oil Splurge Out Of Your Power Valve Area Chances Are Your Power Valve Seal And O-Rings Have Gone Hard. They Are Subject To A Lot Of Heat And Spent Two Stroke Oil So Do Get A Very Hard Time, This Can Lead To Exhaust Gases Escaping That Can Change How The Engine Runs.

We Have Put Together This Kit That Contains 2 O-Rings (one for each end of the bushes) And 1 Shaft Seal That Fits Into The Left Hand Bush.


Price: 10.96 (13.15 Including VAT at 20%)


Quantity:




People who bought this item also bought:
1. Yamaha DT125 R Power Valve Dowel
2. Yamaha DT125R Top End Gasket Kit Athena
3. Yamaha DT125R Front Sprocket



Yamaha DT125R Power Valve Seal

Yamaha DT125R Power Valve Seal

Power Valve Seal To Fit The Yamaha DT 125 R

Fits All Models Of The DT125R

Number 19 on Diagram above

1 Required Per Engine

Price Is For 1

Genuine Yamaha Part Number 93108-23010


Price: 4.99 (5.99 Including VAT at 20%)


Quantity:




People who bought this item also bought:
1. Yamaha TDR250 Base Gasket
2. Yamaha TZR125R Full Gasket Set Athena



Yamaha DT125R Power Valve Bush O-Ring

Yamaha DT125R Power Valve Bush O-Ring

Power Valve Bush O-Ring To Fit The Yamaha DT125 R

Number 20 on Diagram above

2 Required Per Engine

Price is for 1

Replaces Yamaha Part Numbers 93210-30734 And 93210-30640


Price: 2.99 (3.59 Including VAT at 20%)


Quantity:






Yamaha DT125 R Power Valve Dowel

Yamaha DT125 R Power Valve Dowel

Yamaha Powervalve Pin


Price: 2.50 (3.00 Including VAT at 20%)





Quantity:




People who bought this item also bought:
1. Yamaha Power Valve Service Kit DT125R, TZR125 Etc
2. Yamaha DT125R Top End Gasket Kit Athena
3. Yamaha DT125R Front Sprocket



Yamaha DT125R NGK Spark Plug

Yamaha DT125R NGK Spark Plug

Yamaha DT125R Standard NGK Spark Plug BR9ES
Price: 4.41 (5.29 Including VAT at 20%)


Quantity:




People who bought this item also bought:
1. Motul Gear 300 75W90 Gear Box Oil
2. Aprilia RS50-Derbi DB50BO Water Temp Sender Piaggio Motor
3. Aprilia RS50-Derbi D50BO Full Gasket Set Budget



Yamaha DT125R NGK Racing Spark Plug

Yamaha DT125R NGK Racing Spark Plug

Yamaha DT125R NGK Racing Spark Plug BR9EG
Price: 8.07 (9.68 Including VAT at 20%)


Quantity:




People who bought this item also bought:
1. Cagiva Mito Clutch Cable Angel End
2. Cagiva Mito Athena Full Gasket Kit
3. Yamaha Power Valve Service Kit TZR125 2RH UK Bike



Customer Reviews

  this is the one  I only ever fit this plug in my Mito evo 1   (28/08/2012) Jason - swadlincote



Yamaha DT125R NGK IRIDIUM Spark Plug

Yamaha DT125R NGK IRIDIUM Spark Plug

Yamaha DT125R NGK IRIDIUM Spark Plug

Iridium Spark Plugs Offers,Enhanced Igniton Efficiency, Better Acceleration,Faster Starting & Smother, Running, Longer Life
Price: 14.14 (16.97 Including VAT at 20%)


Quantity:






NGK Spark Plug Cap Black

NGK Spark Plug Cap Black

NGK Spark Plug Cap For Use With Screw On Terminal Post Black

Suitable For Both 2T And 4T Engines

LB05E Black
Price: 5.74 (6.89 Including VAT at 20%)



Quantity:






NGK Spark Plug Cap Black No Terminal Post

NGK Spark Plug Cap Black No Terminal Post

NGK Spark Plug Cap For Use Without Screw On Terminal Post Black

Suitable For Both 2T And 4T Engines

LB05F Black
Price: 5.97 (7.16 Including VAT at 20%)



Quantity:






NGK Spark Plug Cap Racing Red

NGK Spark Plug Cap Racing Red

Racing Spark Plug Cap Rubber Sheathed For Added Water Proofing

Red

For Use With Screw On Terminal Post Only


Price: 5.74 (6.89 Including VAT at 20%)



Quantity:




People who bought this item also bought:
1. Suzuki RGV 250 Head Gasket Genuine Suzuki Part
2. Suzuki RGV250 Cylinder Head Dowel
3. NGK Spark Plug BR10EG



Customer Reviews

    great cap   (10/07/2014) -





PJ Motorcycle Engineers - Specialists in 2 Stroke Engines


Aprilia RS125 Carb Main Jet Dellorto 6mm
Aprilia RS125 Carb Main Jet Dellorto 6mm

4.68
5.62
find out more

Dellorto VHSB 34LD Pilot Jet
Dellorto VHSB 34LD Pilot Jet

7.95
9.54
find out more

Fuel Pipe 6.5mm Bore Purple
Fuel Pipe 6.5mm Bore Purple

6.75
8.10
find out more


PJME Home
About Us
Contact Us
Links Page
News
General Shipping & Returns Information
Privacy Policy
Online Security
Cagiva 125
Yamaha RD350 LC
Yamaha RD350 YPVS
Cylinder Re-Sleeving
Cylinder Re-Coating
Cylinder Re-Boring
Crankshaft Rebuilding
Engine Rebuilding
Cylinder Packing
Engine Packing
Aprilia RS125
Home | About Us | Shipping & Returns | Terms & Conditions | Contact Us | Site Map | Search | Links & Resources

© Copyright PJME 2008-2013

Actinic Web Design maintained by Hanson Web Design
