Yamaha RD350 Engine Parts Bottom End









Yamaha RD350 Crankshaft Rebuild Service

Yamaha RD350 Crankshaft Rebuild Service

We Carry Out Crankshaft Rebuilds For The RD350 Here At PJ Motorcycle Engineers.

The Price For A Standard RD 350 Crank Rebuild Is £280.00 + VAT

For This We Replace Both Con Rod Kits With Long Brand Rod Kits (Kit Contains Rods, Big End Bearings, Crank Pins, Thrust Washers and Small End Bearings) 4 Main Bearings And The Centre Labyrinth Seal.

The Crank Is Built On A Jig Which Ensures The Crank Is Phased At 180 degrees, The Whole Assembly Is Then Trued By Hand And Is Ready To Be Dropped Into The Crankcase.

Please Get in Touch If You Need This Service.

Telephone: 01902 307457

Mobile Number For WhatsApp Messaging: 07884274838

Email Us Click Here websales@pjme.co.uk











Yamaha RD350 Big End Bearing TZ Style

Yamaha RD350 Big End Bearing TZ Style

TZ Style Replacement Big End Bearing To Fit The Yamaha RD350 All Models.

This is flat bar cage bearing as used on TZ cranks, these have 18 rollers instead of the 14 on the standard

bearing.

Price is for 1 Bearing

Replaces Yamaha Part Number 93310-42231 & 93310422L0
Price: 18.75 (22.50 Including VAT at 20%)





Quantity:






Yamaha RD350 Air Cooled Con Rod Kit

Yamaha RD350 Air Cooled Con Rod Kit

This is a RD350 Air Cooled Con Rod Kit

The kit contains Con Rod, Big End Bearing, Crank Pin, Thrust Washers And Small End Bearing

Price is For 1 Con Rod Kit

This Con Rod Kit Is Made In Japan By "Long" Long makes con rod kits for Yamaha, Suzuki Etc. Long also make con rods for Prox. They are a qualty item and we have been running "Long" brand rods in race motors for years.


Upgrade Your Big End Bearing

Type
Type
None
TZ Style Big End Bearing (+10.00)
None I Will Use The Std Big End (+0.00)





Price: 39.75 (47.70 Including VAT at 20%)



Quantity:






Yamaha RD350 Crankshaft Thrust Washers

Yamaha RD350 Crankshaft Thrust Washers

Pair Of Thrust Washers To Fit The Yamaha RD 350 All Years Of The RD350 Air Cooled

Price Is For 2 Crankshaft Thrust Washers That Fit Either Side Of The Big End Bearing On The Yamaha RD 350

Replaces Yamaha Part Numbers 90209-22292 & 90209-22257


Price: 9.00 (10.80 Including VAT at 20%)





Quantity:






Yamaha RD350 Full Gasket Set Budget

Yamaha RD350 Full Gasket Set Budget

Full Gasket Kit To Fit The Yamaha RD350 Air Cooled Engine, Budget Kit

In This Yamaha RD 350 Gasket Kit You Will Find The Gaskets You Require To Strip And Rebuild Your Engine.

Made In Taiwan


Price: 14.93 (17.92 Including VAT at 20%)



Quantity:






Yamaha RD350 Full Gasket Set Athena

Yamaha RD350 Full Gasket Set Athena

Full Gasket Kit For The Yamaha RD350 Air Cooled Engine.

This Kit Is Made In Italy By Athena And Is A Better Quality One Than The Budget One We Sell Which Is Made In Taiwan. "Why is it better i hear you say" Well the gaskets are made in Italy by Athena who makes gaskets for Aprilia, Ducati, Cagiva Etc so the quality is excellent. The gasket material is better than the Taiwanese we sell and fits much nicer.
Price: 18.50 (22.20 Including VAT at 20%)



Quantity:

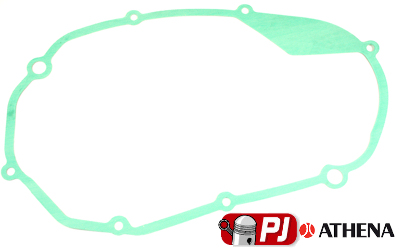

Yamaha RD350 Clutch Cover Gasket 1973-1975

Yamaha RD350 Clutch Cover Gasket 1973-1975

Clutch Cover Gasket For The RD350 Top Qualty Item Made By Athean.

Fits The Following Models And Years

RD350 1973 RD350 A 1974, RD350 B 1975

Made By Athena In Italy Part Number S410485008055

Replaces Yamaha Part Numbers 278-15461-00 2781546112


Price: 8.99 (10.79 Including VAT at 20%)





Quantity:






Yamaha RD350 Crankshaft Bearing RH Side

Yamaha RD350 Crankshaft Bearing RH Side

Right Hand Side Crank Bearing To Fit The Yamaha RD350 Fits All Years Of Yamaha RD 350

This Bearing Fits On The Drive Side Of The Crank

Price Is For One Bearing But 1 And Only 1 Is Required Per Crankshaft.

Replaces Yamaha Part Number 93306-30549

Quality Bearing Made By Koyo / HIC Japan, These Are The Correct C3 Grade And Feature All The Locating Grooves & Pips As The Originals.


Price: 14.99 (17.99 Including VAT at 20%)





Quantity:






Yamaha RD350 Crankshaft Bearing LH Side

Yamaha RD350 Crankshaft Bearing LH Side

Left Hand Side Crank Bearing To Fit The Yamaha RD350 Fits All Years Of Yamaha RD 350

This Bearing Fits On The Timing Side Of The Crank

Price Is For One Bearing But 1 And Only 1 Is Required Per Crankshaft.

Replaces Yamaha Part Number 93306-30549

Quality Bearing Made By Koyo / HIC Japan, These Are The Correct C3 Grade And Feature All The Locating Grooves & Pips As The Originals.


Price: 14.99 (17.99 Including VAT at 20%)





Quantity:






Yamaha RD350 Centre Crankshaft Bearing

Yamaha RD350 Centre Crankshaft Bearing

Centre Crank Bearing To Fit The Yamaha RD350 Fits All Years Of Yamaha RD 350

Price Is For One Bearing But 2 Are Required Per Crankshaft.

Replaces Yamaha Part Number 93306-20621

Quality Bearing Made By Koyo / HIC Japan, These Are The Correct C3 Grade And Feature All The Locating Grooves & Pips As The Originals.


Price: 14.99 (17.99 Including VAT at 20%)





Quantity:






Yamaha RD350 Crank Seal RH Drive Side OEM

Yamaha RD350 Crank Seal RH Drive Side OEM

This Is A Crankshaft Oil Seal To Fit The Yamaha RD350 RH Side

This Seal Fits Into The Drive Side Of The Crank Case On The Yamaha RD 350 Fits All Years And Modles

The Seal Is Made In Japan By ARS

Tip: The Seal Has Castellation's On One Side, These Go Against The Bearing To Allow Oil To Flow Around The Drive Side Bearing. Some Manuals And Parts Books Shows It The Other Way Around.


Price: 7.88 (9.46 Including VAT at 20%)





Quantity:

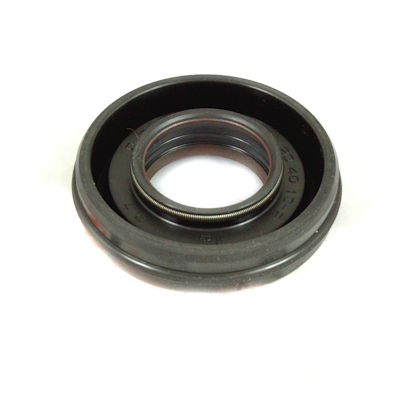

Yamaha RD350  Crank Seal LH Timing Side OEM

Yamaha RD350 Crank Seal LH Timing Side OEM

This Is A Crankshaft Oil Seal To Fit The Yamaha RD350

This Seal Fits Into The Timing (the side with the generator flywheel on it) Side Of The Crank Case On The RD 350 All Modles

The Seal Is Made In Japan By ARS

Note The Inside Diameter Of The Seal Is 20mm


Price: 9.99 (11.99 Including VAT at 20%)





Quantity:






Yamaha RD350 Crank Seal RH Drive Side Genuine Yamaha

Yamaha RD350 Crank Seal RH Drive Side Genuine Yamaha

This Is A Genuine Yamaha Crankshaft Oil Seal To Fit The Yamaha Yamaha RD350 RH Side

This Seal Fits Into The Drive Side Of The Crank Case On The Yamaha RD 350 Fits All Years And Modles

Yamaha Part Number: 93103-40077

Tip: The Seal Has Castellation's On One Side, These Go Against The Bearing To Allow Oil To Flow Around The Drive Side Bearing. Some Manuals And Parts Books Shows It The Other Way Around.


Price: 10.81 (12.97 Including VAT at 20%)





Quantity:

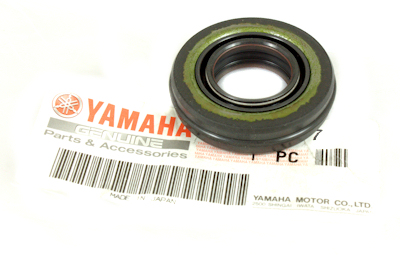

Yamaha RD350 Crank Seal LH Timing Side Genuine Yamaha

Yamaha RD350 Crank Seal LH Timing Side Genuine Yamaha

This Is A Genuine Yamaha Crankshaft Oil Seal To Fit The Yamaha RD350

This Seal Fits Into The Timing (the side with the generator flywheel on it) Side Of The Crank Case On The RD 350 All Models

Yamaha Part Number: 93103-20076


Price: 12.50 (15.00 Including VAT at 20%)





Quantity:






Yamaha RD350 Labrynth Seal

Yamaha RD350 Labrynth Seal

Yamaha RD350 Centre Crankshaft Labyrinth Seal

This Seal Fits Between The Two Centre Crank Main Bearings And Stops Crank Case Pressure Passing Between The Two Cylinders.

Fits All Years Of The Yamaha RD 350 Air cooled Engine.

Replaces Yamaha Part Number 278-11515-00


Price: 20.97 (25.16 Including VAT at 20%)



Quantity:






Yamaha RD350 Woodruff Key

Yamaha RD350 Woodruff Key

Ignition Woodruff Key To Fit The Yamaha RD350 All Models
Price: 2.95 (3.54 Including VAT at 20%)


Quantity:




Sorry Out Of Stock



Yamaha RD350 Kick Start Shaft Oil Seal

Yamaha RD350 Kick Start Shaft Oil Seal


Price: 1.73 (2.08 Including VAT at 20%)



Quantity:






Yamaha RD350 Gear Change Shaft Seal

Yamaha RD350 Gear Change Shaft Seal


Price: 1.99 (2.39 Including VAT at 20%)



Quantity:






Yamaha RD350 Sprocket Seal

Yamaha RD350 Sprocket Seal

Yamaha RD350 Sprocket Shaft Seal

Replaces Genuine Yamaha Part Number 93102 35109
Price: 7.34 (8.81 Including VAT at 20%)



Quantity:






Yamaha RD350 Sprocket Tab Washer

Yamaha RD350 Sprocket Tab Washer

Front Sprocket Tab Washer To Fit The Yamaha RD350 All Years

Yamaha Part Number 9021521239
Price: 2.70 (3.24 Including VAT at 20%)


Quantity:




People who bought this item also bought:
1. Yamaha RD400 Neutral Switch Plate O-Ring
2. S410485015004 RD350-250-RD250LC 350LC Reed Valve Gasket
3. Yamaha RD400 Clutch Arm Return Spring



Yamaha RD350 Clutch Push Rod Shaft Seal

Yamaha RD350 Clutch Push Rod Shaft Seal

Yamaha RD350 Clutch Push Rod Shaft Seal
Price: 2.43 (2.92 Including VAT at 20%)



Quantity:






Yamaha RD350 Clutch Push Rod Shaft Ball

Yamaha RD350 Clutch Push Rod Shaft Ball

Yamaha RD350 Clutch Push Rod Shaft ball bearing.

Fits All Years Of The RD 350 And All Models

Genuine Yamaha Part 93505-16006


Price: 2.59 (3.11 Including VAT at 20%)





Quantity:






Yamaha RD350 Gearbox Bearing RH Input

Yamaha RD350 Gearbox Bearing RH Input

RH Gearbox Input Shaft Bearing To Fit The Yamaha RD350 All Years

This Bearing Is The One That Fits Behind The Clutch Basket On The RH Side Of The RD 350 Engine

The Bearing Supplied Will Be Either A Genuine Yamaha Part 93305-20502 Or O.E.M Koyo Bearing Made In Japan.

Number 2 on the Diagram belolw


Price: 42.20 (50.64 Including VAT at 20%)





Quantity:






Yamaha RD350 Gearbox Bearing LH Input

Yamaha RD350 Gearbox Bearing LH Input

LH Gearbox Input Shaft Bearing To Fit The Yamaha RD350 All Years

This Bearing Is The One That Fits On The Input Shaft On the LH Side Of The RD 350 Engine

Genuine Yamaha Part Number 93311-22027

Number 13 on the Diagram belolw


Price: 17.77 (21.32 Including VAT at 20%)





Quantity:






Yamaha RD350 Gearbox Bearing RH Output

Yamaha RD350 Gearbox Bearing RH Output

RH Gearbox Output Shaft Bearing To Fit The Yamaha RD350 All Years

This Bearing Is The One That Fits On The Output Shaft On the RH Side Of The RD 350 Engine

Genuine Yamaha Part Number 93311-42045

Number 17 on the Diagram belolw


Price: 17.97 (21.56 Including VAT at 20%)





Quantity:






Yamaha RD350 Gearbox Bearing LH Output

Yamaha RD350 Gearbox Bearing LH Output

LH Gearbox Output Shaft Bearing To Fit The Yamaha RD350 All Years

This Bearing Is The One That Fits On The Output Shaft On the LH Side Of The RD 350 Engine

Genuine Yamaha Part Number 93306-30504 The Bearing Will Be Either A Genuine Yamaha One OR A Koyo Made In Japan One Depending On Stock

Number 30 on the Diagram belolw


Price: 19.44 (23.33 Including VAT at 20%)





Quantity:






Yamaha RD350 Crank Half Moon C Clip

Yamaha RD350 Crank Half Moon C Clip

Yamaha RD350 Crank Bearing Circlip, This Clip Locates The Drive Side RH Crankshaft Bearing Into The Crank Case On The RD 350 Fits All Years.

Yamaha Part Number 278-17424-01

Number 12 In The Diagram


Price: 6.20 (7.44 Including VAT at 20%)





Quantity:






Yamaha RD350 Gearbox Bearing Half Moon Clip 31

Yamaha RD350 Gearbox Bearing Half Moon Clip 31

Yamaha RD350 Crank Bearing Circlip, This Clip Locates The LH Side Outputshaft (Sprocket Side) Bearing Into The Crank Case On The RD 350 Fits All Years.

Yamaha Part Number 278-17424-01

Number 31 In The Diagram


Price: 6.20 (7.44 Including VAT at 20%)





Quantity:






Yamaha RD350 Gearbox Bearing Clip Number 18

Yamaha RD350 Gearbox Bearing Clip Number 18

Yamaha RD350 Gear Box Bearing Half Moon Circlip.

This Clip Locates The Drive Side ( RH ) Output Shaft Gearbox Bearing Into The Crank Case On The RD 350

Yamaha Part Number 278-17425-00

Number 18 In The Diagram


Price: 4.00 (4.80 Including VAT at 20%)





Quantity:






Yamaha RD350 Gearbox Bearing Clip Number 3

Yamaha RD350 Gearbox Bearing Clip Number 3

Yamaha RD350 Gear Box Bearing Circlip, This Clip Locates The Drive Side ( RH ) Input Shaft Gearbox Bearing Into The Crank Case On The RD 350 Fits All Years. The Clip Fits Over The Bearing.

Yamaha Part Number 93440-52009

Number 3 In The Diagram


Price: 5.12 (6.14 Including VAT at 20%)





Quantity:






Yamaha RD350 Oil Pump Seal

Yamaha RD350 Oil Pump Seal

Oil Pump Seal To Fit The Yamaha RD350 Fits All Years
Price: 1.28 (1.54 Including VAT at 20%)


Quantity:






Yamaha RD350 Selector Shaft Plug Seal

Yamaha RD350 Selector Shaft Plug Seal

Yamaha RD350 RD 350 Selector Shaft Plug Seal Fits All Years Of The RD 350

These Are Often Required If You Are Removing The Transmission As You Need To Remove The Selector Shafts And The Old Ones Can Get Damaged.

Price Is For 1 But 2 Are Required

Yamaha Part Number 90338-22207
Price: 4.04 (4.85 Including VAT at 20%)





Quantity:






Yamaha RD350 Clutch Plates

Yamaha RD350 Clutch Plates

Set Of EBC Friction Clutch Plates To Fit The Yamaha RD350
Price: 45.00 (54.00 Including VAT at 20%)



Quantity:






Yamaha RD350 Heavy Duty Clutch Springs

Yamaha RD350 Heavy Duty Clutch Springs

Up- Rated Clutch Springs For The Yamaha RD350
Price: 7.99 (9.59 Including VAT at 20%)



Quantity:






Yamaha RD350 Clutch Arm Return Spring

Yamaha RD350 Clutch Arm Return Spring

Replacement Clutch Return Spring To Fit The Yamaha RD350 Fits All Models
Price: 3.49 (4.19 Including VAT at 20%)


Quantity:




People who bought this item also bought:
1. Yamaha RD400 Neutral Switch Plate O-Ring
2. S410485015004 RD350-250-RD250LC 350LC Reed Valve Gasket
3. 9021521239 Yamaha Sprocket Tab Washer



Yamaha RD350 Neutral Switch Plate

Yamaha RD350 Neutral Switch Plate

Neutral light Switch Plate to Fit the Yamaha RD350, These Always Split Where The Countersunk Screws Fit In.

Tip For fitting, Put some thread lock on the Screws and don't over tighten !

Yamaha Part Number 1L98254000
Price: 20.95 (25.14 Including VAT at 20%)





Quantity:






Yamaha RD350 Neutral Switch Plate O-Ring

Yamaha RD350 Neutral Switch Plate O-Ring

Replacement O Ring To Fit The Neutral Light Switch Plate Cover For The Yamaha RD350

Fits All Years Of The Yamaha RD 350 Air Cooled Engine

Yamaha Part Number 93210-29196


Price: 2.64 (3.17 Including VAT at 20%)





Quantity:








PJ Motorcycle Engineers - Specialists in 2 Stroke Engines


Aprilia RS125 Carb Main Jet Dellorto 6mm
Aprilia RS125 Carb Main Jet Dellorto 6mm

4.68
5.62
find out more

Aprilia RS125 Moto RRT Oil Filler Plug Alloy Type
Aprilia RS125 Moto RRT Oil Filler Plug Alloy Type

7.99
9.59
find out more

Fuel Pipe 6.5mm Bore Purple
Fuel Pipe 6.5mm Bore Purple

6.75
8.10
find out more


PJME Home
About Us
Contact Us
Links Page
News
General Shipping & Returns Information
Privacy Policy
Online Security
Cagiva 125
Yamaha RD350 LC
Yamaha RD350 YPVS
Cylinder Re-Sleeving
Cylinder Re-Coating
Cylinder Re-Boring
Crankshaft Rebuilding
Engine Rebuilding
Cylinder Packing
Engine Packing
Aprilia RS125
Home | About Us | Shipping & Returns | Terms & Conditions | Contact Us | Site Map | Search | Links & Resources

© Copyright PJME 2008-2013

Actinic Web Design maintained by Hanson Web Design
