Yamaha RD500 Engine Parts Bottom End









Yamaha RD500 Crankshaft Rebuild Service

Yamaha RD500 Crankshaft Rebuild Service

We Carry Out Crankshaft Rebuilds For The Yamaha RD500 RZ500 Here At PJ Motorcycle Engineers.

The Yamaha RD500 like most 2 strokes has a pressed together crankshaft assembly, but unlike most two stroke cranks the crank pin (the part the big end bearing runs on) is replaceable. On the RD 500 crank the Crank pin is integral to the inner flywheel web. This makes the crankshaft difficult to quote for a rebuild. If there is wear to the crank pins you have to buy a complete inner web. These are £41.25 each + vat and there are 2 of them.

Depending on how worn the crank is the webs may or may not need replacing, if the big end bearing has let go then 100% it will need a new web, But if the crank has done low hours then you may get away with a std build. Without stripping the crankshaft down it is impossible to tell what parts will need to be replaced

With a Standard crankshaft build we strip all the components of the crankshaft clean and inspect for cracks then replace the following parts, Con rods, Big end bearings, Thrust washers, small end bearing, all 4 main bearings and centre labyrinth seal. All the parts are NEW and are high quality parts made in Japan IE Koyo / Hic Bearings And Long Brand Con Rods ETC.

We then build the crank on a jig which ensures the crank is phased at 180 degrees, the whole assembly is then trued by hand. The Crank is ready to be dropped into the crankcases.

The Price For A Standard Crank Rebuild Is £279.48 + VAT There are options to up-grade the big end bearings to TZ style for £20.00 + vat.

PLEASE NOTE PRICES ARE PER CRANKSHAFT, THE RD500 HAS 2 CRANKSHAFTS PER ENGINE.

Turnaround is usually 10 days' workshop time, payment is not required until your crank is ready to send back to you. Payment can be via credit card, PayPal or bank transfer.

Please Get in Touch If You Need This Service Or If You Have Some More Questions.

Telephone: 01902 307457

Mobile Number For WhatsApp Messaging: 07884274838

Email Us Click Here websales@pjme.co.uk

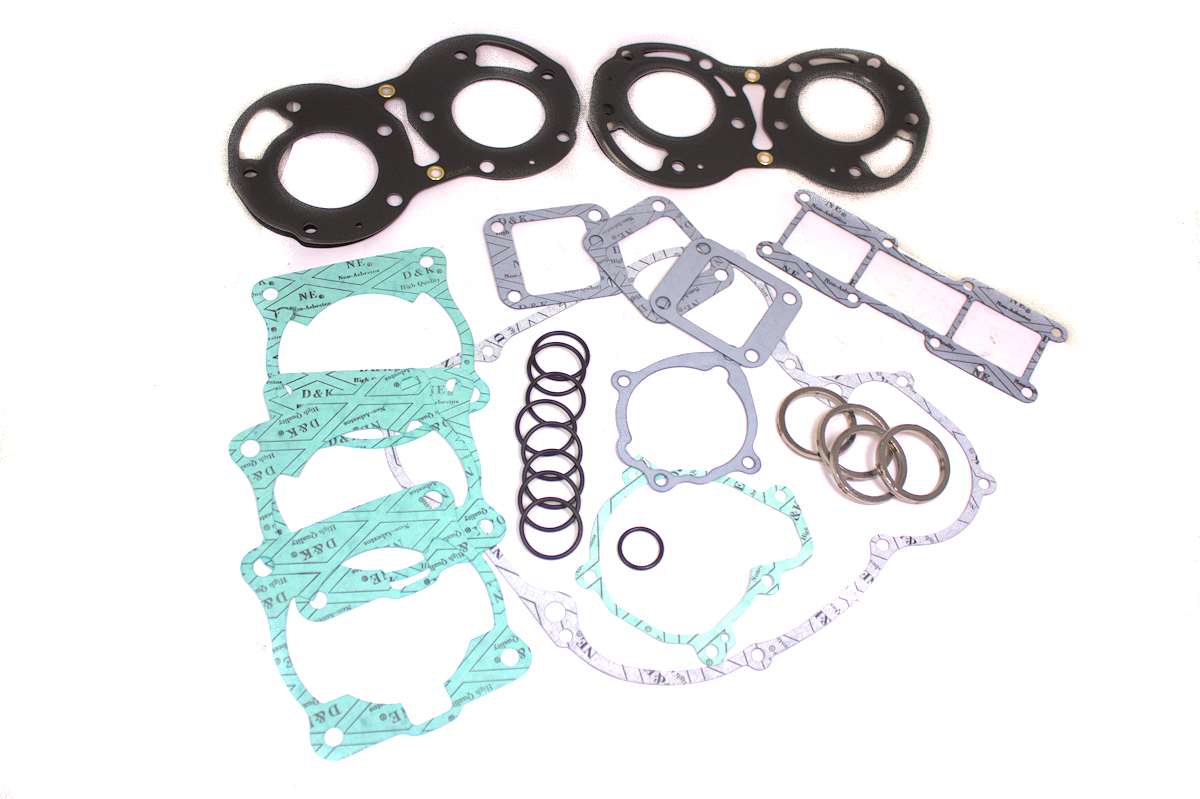

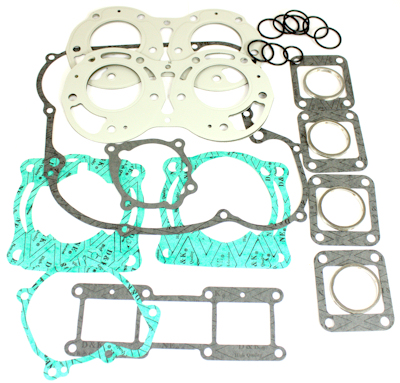

Yamaha RD500 Full Gasket Set

Yamaha RD500 Full Gasket Set

Full Gasket Set For A Yamaha RD 500 RVZ 500

Gasket Kit To Fit The Yamaha RD500 Yamaha RVZ500

Kit Fits All Models Of The Yamaha RD 500 47X, 1GE, 52X, 1VW, 53G And 51X Codes Also Know As The RVZ 500
Price: 47.60 (57.12 Including VAT at 20%)



Quantity:






Yamaha RD500 Con Rod Kit

Yamaha RD500 Con Rod Kit

Yamaha RD500 Con Rod Kit Connecting Rod

Kit Fits All Models Of The Yamaha RD 500 47X, 1GE, 52X, 1VW, 53G And 51X Codes Also Know As The RVZ 500

Kit Comes With Big end Bearing, Thrust washers and small end bearing

Price is for one Con Rod Kit
Price: 41.25 (49.50 Including VAT at 20%)



Quantity:






Yamaha RD500 Big End Bearing TZ Style

Yamaha RD500 Big End Bearing TZ Style

TZ Style Replacement Big End Bearing To Fit The Yamaha RD500 All Models.

This is flat bar cage bearing as used on TZ cranks, these have 16 rollers instead of the 14 on the standard

bearing.

Price is for 1 Bearing

Replaces Yamaha Part Number 93310-523D2, 93310-42231 & 93310422L0
Price: 18.75 (22.50 Including VAT at 20%)





Quantity:






Yamaha RD500 Crankshaft Thrust Washers

Yamaha RD500 Crankshaft Thrust Washers

Pair Of Thrust Washers To Fit The Yamaha RD500 LC All Years

Price Is For 2 Crankshaft Thrust Washers That Fit Either Side Of The Big End Bearing On The Yamaha RD 500LC

Replaces Yamaha Part Numbers 90209-22292 & 90209-22257


Price: 9.00 (10.80 Including VAT at 20%)





Quantity:






Yamaha RD500 Crank Seal RH Drive Side OEM

Yamaha RD500 Crank Seal RH Drive Side OEM

This Is A Crankshaft Oil Seal To Fit The Yamaha Yamaha RD500 RH Side

This Seal Fits Into The Drive Side Of The Crank Case On The Yamaha RD 500 RZ 500 All Years.

NOTE PRICE IS FOR 1 SEAL BUT 2 ARE REQUIRED PER ENGINE

The Seal Is Made In Japan By ARS

Tip: The Seal Has Castellation's On One Side, These Go Against The Bearing To Allow Oil To Flow Around The Drive Side Bearing. Some Manuals And Parts Books Shows It The Other Way Around.

Price Is For 1 Seal


Price: 13.79 (16.55 Including VAT at 20%)





Quantity:






Yamaha RD500 Crank Seal LH Timing Side OEM

Yamaha RD500 Crank Seal LH Timing Side OEM

This Is A Crankshaft Oil Seal To Fit The Yamaha RD500 LH Side

This Seal Fits Into The Timing (the side with the generator flywheel on it) Side Of The Crank Case On The Yamaha RD 500 RZ 500 All Years

The Seal Is Made In Japan By ARS


Price: 9.84 (11.81 Including VAT at 20%)





Quantity:






Yamaha RD500 Crank Seal RH Drive Side Genuine Yamaha

Yamaha RD500 Crank Seal RH Drive Side Genuine Yamaha

This Is A Genuine Yamaha Crankshaft Oil Seal To Fit The Yamaha Yamaha RD500 RH Side

This Seal Fits Into The Drive Side Of The Crank Case On The Yamaha RD 500 RZ 500 All Years

Yamaha Part Number: 93103-35149

NOTE PRICE IS FOR 1 SEAL BUT 2 ARE REQUIRED PER ENGINE

Tip: The Seal Has Castellation's On One Side, These Go Against The Bearing To Allow Oil To Flow Around The Drive Side Bearing. Some Manuals And Parts Books Shows It The Other Way Around.

Price Is For 1 Seal


Price: 21.75 (26.10 Including VAT at 20%)





Quantity:






Yamaha RD500 Crank Seal LH Timing Side Genuine Yamaha

Yamaha RD500 Crank Seal LH Timing Side Genuine Yamaha

This Is A Genuine Yamaha Crankshaft Oil Seal To Fit The Yamaha RD500 LH Side

This Seal Fits Into The Timing (the side with the generator flywheel on it) Side Of The Crank Case On The RD 500 RZ 500 All Years

Yamaha Part Number: 93103-25108


Price: 12.81 (15.37 Including VAT at 20%)





Quantity:






Yamaha RD500  Water Pump Seal Budget

Yamaha RD500 Water Pump Seal Budget

Water Pump Seal To Fit The Yamaha RD 500

Seal Fits All Models Of The Yamaha RD 500 47X, 1GE, 52X, 1VW, 53G And 51X Codes Also Know As The RVZ 500

Replaces Yamaha Part Number 93103 10168 & 93103 10147

This Is A Budget Aftermarket Water Pump Seal

Made In Taiwan
Price: 12.50 (15.00 Including VAT at 20%)


Quantity:




People who bought this item also bought:
1. Yamaha DT125LC Crank Seal RH OEM
2. Yamaha DT125LC Sprocket Shaft Seal
3. Yamaha Gear Change Shaft Seal 93101-12173



Customer Reviews

  Water pump seal   Much cheaper the main dealer and faster delivery Top Qualty   (03/12/2012) -



Yamaha RD500LC Water Pump Seal Genuine Made In Japan

Yamaha RD500LC Water Pump Seal Genuine Made In Japan

Water Pump Seal To Fit The Yamaha RD500 Will Fit All Years Of The RD500 LC

This Is A Genuine Yamaha Part Made In Japan By ARS. It Comes Pre Greased And With The Correct Stainless Steel Springs Unlike The Pattern / Budget Ones.

Yamaha Part Number 93103 10168 & 93103 10147


Price: 19.13 (22.96 Including VAT at 20%)





Quantity:






Yamaha RD500 Centre Shaft

Yamaha RD500 Centre Shaft

Yamaha RD500 Centre shaft for the crankshaft.

Fits All Models Of The Yamaha RD 500 47X, 1GE, 52X, 1VW, 53G And 51X Codes Also Know As The RVZ 500

This is the part where the centre bearings and labrynth seal run on
Price: 11.69 (14.03 Including VAT at 20%)



Quantity:

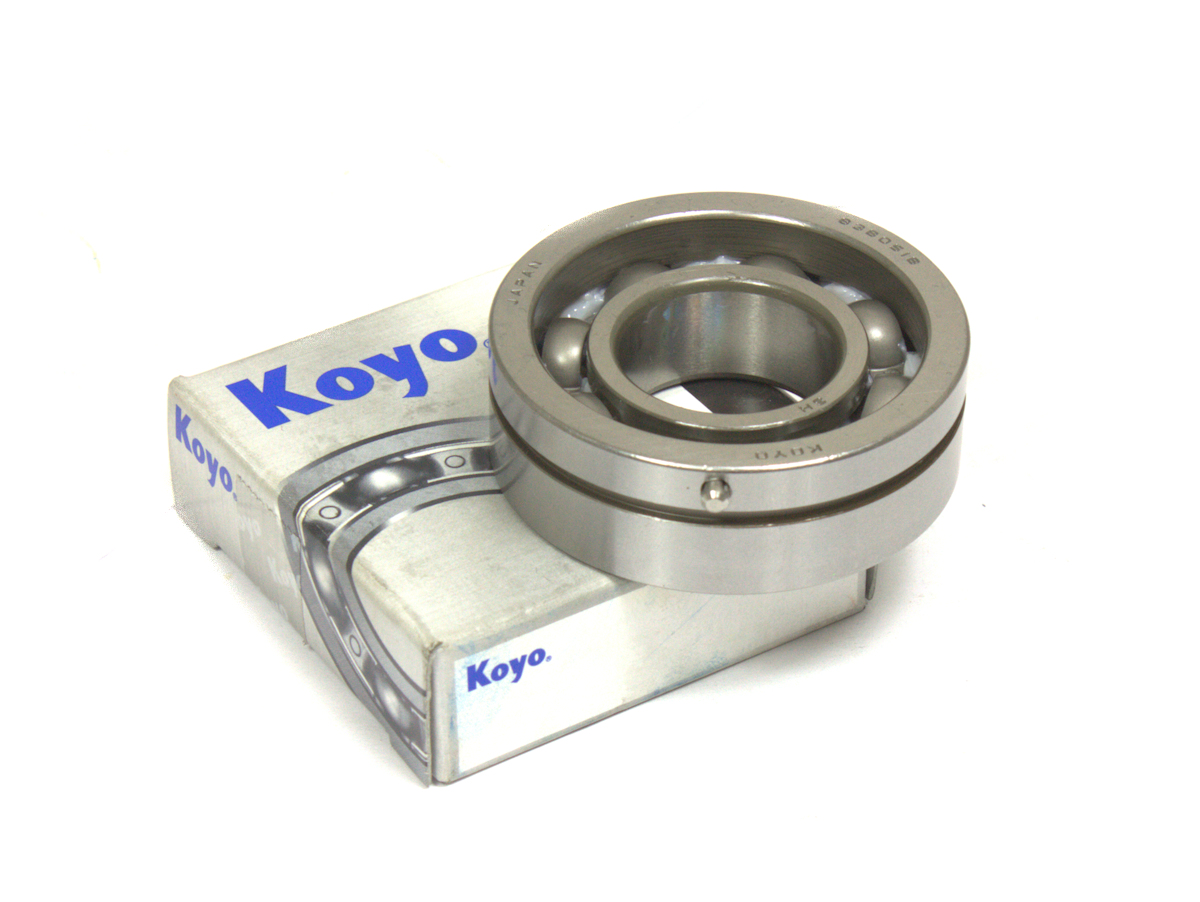

Yamaha RD500 Crankshaft Main Bearings

Yamaha RD500 Crankshaft Main Bearings

Set Of 4 Main Crankshaft Bearings For The RD500 (The RD500 Has 2 Cranks So You Will Need 2 Sets If Doing Both Cranks)

2 Centre Bearings And 2 Outer Bearings

Fits All Models Of The Yamaha RD 500 47X, 1GE, 52X, 1VW, 53G And 51X Codes Also Know As The RVZ 500

Made By Koyo In Japan
Price: 92.77 (111.32 Including VAT at 20%)



Quantity:






Yamaha RD500 Centre Labrynth Seal

Yamaha RD500 Centre Labrynth Seal

Yamaha RD500 Centre Labrynth Seal

This Seal Fits Between The Two Centre Crank Main Bearings And Stops Crank Case Pressure Passing Between The Two Cylinders.

Fits All Models And Years Of The Yamaha RD 500 Engine 47X, 1GE, 52X, 1VW, 53G And 51X Codes Also Know As The RVZ 500.


Price: 27.85 (33.42 Including VAT at 20%)



Quantity:






Yamaha RD500 Fly Wheel Web And Pin

Yamaha RD500 Fly Wheel Web And Pin

Yamaha RD500 Flywheel Web And Pin.

Fits All Models Of The Yamaha RD 500 47X, 1GE, 52X, 1VW, 53G And 51X Codes Also Know As The RVZ 500

These are often needed during a crankshaft rebuild, as the crank pin is integral part of the flywheel web and wears the same as the con rod.

Price is for 1Web
Price: 41.25 (49.50 Including VAT at 20%)



Quantity:






Yamaha RD500 Crankshaft Centre Assembly

Yamaha RD500 Crankshaft Centre Assembly

Yamaha RD500 Crankshaft Centre Section To Fit The RD 500 RZ500 RVZ500 47X, 1GE, 52X, 1VW, 53G And 51X Codes

As you can see by the photos it comes ready built with 2 new inner webs, 2 main bearings, centreshaft, lab seal and built on an indexing jig to ensure the webs are accurately aligned at 180° ° We are offering this for customers to build their own crank as it is very hard to get the 2 inner webs built up.

2 Required Per Engine


Price: 144.71 (173.65 Including VAT at 20%)





Quantity:
