Yamaha TZR250 Engine Parts Top End









Yamaha TZR250 Small End Bearing

Yamaha TZR250 Small End Bearing

Quality Small End Bearing To Fit The Yamaha TZR250
Price: 4.50 (5.40 Including VAT at 20%)



Quantity:






Yamaha TZR250 Piston Kit 1987-1991

Yamaha TZR250 Piston Kit 1987-1991

Piston kit to fit the Yamaha TZR250 code on the cylinder should be 1KT

contains piston, piston rings, gudgeon pin and 2 circlips

PRICE IS FOR 1 PISTON KIT as this bike is twin cylinder you may need 2 of them.

The Yamaha TZR250 Engine Has A Std Bore Of 56.40mm. The Cylinder Is Fitted With A Cast iron Sleeve From The Factory And Is Re-boreable So Please Check Your Size Before Ordering The Piston.

You Can Go All The Way Up To 59.15mm But After Around 57.00mm The Cylinder Head Gasket And Cylinder Head May Need To Be Opened Out To Avoid The Piston Hitting Them.

Piston Made By Mitaka





Price: 44.10 (52.92 Including VAT at 20%)



Quantity:






Yamaha TZR250 Genuine Yamaha Small End Bearing

Yamaha TZR250 Genuine Yamaha Small End Bearing

Small End Bearing To Fit The Yamaha TZR 250 1KT and 3MA This Is A Genuine Yamaha Part.

The Size Is 16-21-19.5

This Relates To The Gudgeon Pin Or Wrist Pin Being 16mm OD, The Inside Of The Connecting Rod Being 20mm And The Bearing Being 19.50mm Wide.

Genuine Yamaha Part Number 93310-316D5 Replaces Part Number 93310-316H7


Price: 22.65 (27.18 Including VAT at 20%)


Quantity:






Yamaha TZR250 Top Gasket Set 1987-1991 Budget

Yamaha TZR250 Top Gasket Set 1987-1991 Budget

Top End Gasket Kit To Fit The Yamaha TZR250 1987-1991TZR 250 1KT

All the gaskets you require to strip and rebuild your top end are in these kits.

This Is A Budget Kit Made In Taiwan


Price: 18.37 (22.04 Including VAT at 20%)



Quantity:






Yamaha TZR250 Top End Gasket Kit Athena

Yamaha TZR250 Top End Gasket Kit Athena

Top End Gasket Set To Fit The Yamaha TZR250 1987-1991TZR 250 1KT Fits All Years Of The TZR250 1KT

This Kit Is Made In Italy By Athena And Is A Better Quality One Than The Budget One We Sell Which Is Made In Taiwan. "Why is it better i hear you say" Well the gaskets are made in Italy by Athena who makes gaskets for Aprilia, Ducati, Cagiva Etc so the quality is excellent. The gasket material is better than the Taiwanese we sell and fits much nicer.

Made In Italy By Athena Part Number P400485600258
Price: 25.30 (30.36 Including VAT at 20%)



Quantity:






Yamaha TZR250 Athena Head Gasket

Yamaha TZR250 Athena Head Gasket

Head gasket for the Yamaha TZR250 2MA 1KT Model

High quality head gasket for the TZR 250 Made in Italy by Athena

Replaces Yamaha Part Number 1KT-11181-00
Price: 19.62 (23.54 Including VAT at 20%)





Quantity:

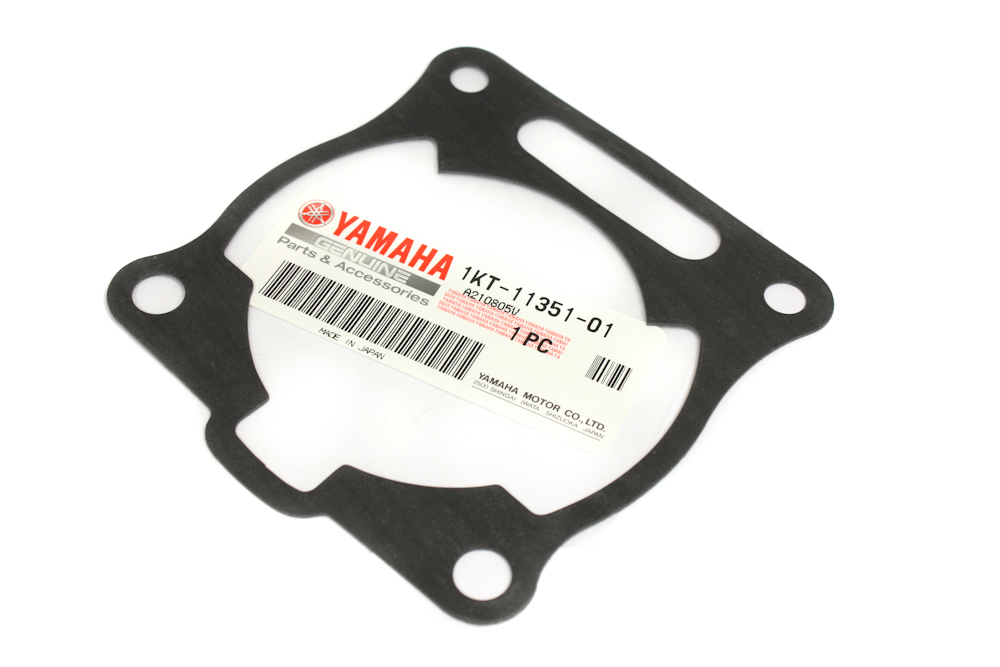

Yamaha TZR250 Base Gasket

Yamaha TZR250 Base Gasket

Yamaha TZR 250 Base Gasket To Fit The 1KT 2MA Model

The Gasket Is a Quality Gasket Made in Italy by Athena, It Is 0.50mm Thick "un-compressed"

Replaces Yamaha Part Number 1KT-11351-00


Price: 2.50 (3.00 Including VAT at 20%)



Quantity:






Yamaha TZR250 Genuine Yamaha Head Gasket

Yamaha TZR250 Genuine Yamaha Head Gasket

Genuine Yamaha TZR250 TZR 250 Head Gasket Fits 1KT And 2MA Models

Yamaha Part Number 1KT-11181-00
Price: 40.81 (48.97 Including VAT at 20%)





Quantity:






Yamaha TZR250 Exhaust Crush Ring

Yamaha TZR250 Exhaust Crush Ring

Yamaha TZR250 Exhaust Gaskets To Fit The TZR 250 1KT 2ma Bike

This Is The Inner Crush Type Gasket That Fits Over The Exhaust Pipe And Into The Cylinder On The TZR 250.

The Gasket Is Made By Athena In Italy And Is Preferred By Many To The Original Yamaha Part Due To It Being Stronger And Much More Resilient To The Heath And 2 Stroke Oil.

Athena Part Number S410485012026

Replaces Yamaha Part Numbers 29L-14613-00, 1L9-14613-00


Price: 10.29 (12.35 Including VAT at 20%)





Quantity:






Yamaha TZR250 Exhaust Gasket Outer

Yamaha TZR250 Exhaust Gasket Outer

Yamaha TZR250 Exhaust Gaskets To Fit The TZR 250 1KT 2ma Bike

This Is The Outer Type Gasket That Fits Between The Exhaust Pipe And The Face Of The Cylinder On The TZR 250.

The Gasket Is Made By Athena In Italy And Is Preferred By Many To The Original Yamaha Part Due To It Being Stronger And Much More Resilient To The Heat And 2 Stroke Oil.

Athena Part Number S410485012025

Replaces Yamaha Part Numbers 29L-14643-00, 2YK-14643-00


Price: 2.30 (2.76 Including VAT at 20%)





Quantity:






Yamaha TZR250 Cylinder Head Stud Long #12

Yamaha TZR250 Cylinder Head Stud Long #12

Cylinder Head Stud To Fit The TZR250 2ma 1kt Etc

There are 5 Studs Used In the TZR 250 Cylinder Barrel.

This Is The Longer Stud And 2 Are Used Per Cylinder, These Fit Either Side Of The Cylinder # 12 In The Photo.

Price Is For 1 Stud But 2 Are Required Per Cylinder 4 Per Engine.

Yamaha Part Number 90116-08448
Price: 3.75 (4.50 Including VAT at 20%)





Quantity:






Yamaha TZR250 Cylinder Head Stud Short #13

Yamaha TZR250 Cylinder Head Stud Short #13

Cylinder Head Stud To Fit The TZR250 2ma 1kt Etc

There are 5 Studs Used In the TZR 250 Cylinder Barrel.

This Is The Shorter Stud And 3 Are Used Per Cylinder # 12 In The Photo.

Price Is For 1 Stud But 3 Are Required Per Cylinder 6 Per Engine.

Yamaha Part Number 90116-08392
Price: 4.08 (4.90 Including VAT at 20%)





Quantity:






Yamaha TZR250 Cylinder Exhaust Stud

Yamaha TZR250 Cylinder Exhaust Stud

Exhuast Stud For The Yamaha TZR 250 Fits All Years Of The Yamaha TZR250 2ma 3ma etc

Yamaha Part Number 90116-08365
Price: 6.83 (8.20 Including VAT at 20%)





Quantity:






Yamaha TZR250 Piston C-Clips

Yamaha TZR250 Piston C-Clips

Pair Of C-Clips For The Yamaha TZR250 Piston

(price is for a pair IE 2 c-clips)
Price: 2.50 (3.00 Including VAT at 20%)



Quantity:






Yamaha TZR250 Gudgeon Pin

Yamaha TZR250 Gudgeon Pin

Replacement G-pin For The Yamaha TZR250 Piston Kit.

Also Know As Piston Pin Wrist Pin Fits All Years Of The TZR 250

Fits All Brands Of Piston Kit, Vertex, Mitaka, Wossner, Genuine Etc.

Replaces Yamaha Part Number 137-11633-00 3MB-11633-00

Made in Japan


Price: 4.40 (5.28 Including VAT at 20%)



Quantity:






Yamaha TZR 250 Power Valve Seal

Yamaha TZR 250 Power Valve Seal

Power Valve Seal To Fit The Yamaha TZR 250 Fits All Years Of The TZR250 2MA 1KT 2xw

Price Is For 1 Seal

Genuine Yamaha Parts Number 93108-23010
Price: 4.99 (5.99 Including VAT at 20%)


Quantity:




People who bought this item also bought:
1. Yamaha TDR250 Base Gasket
2. Yamaha TZR125R Full Gasket Set Athena



Yamaha TZR 250  Power Valve Bush O-Ring

Yamaha TZR 250 Power Valve Bush O-Ring

Power Valve Bush O-Ring To Fit The Yamaha TZR 250 Fits All Years Of The TZR250 2ma 1kt 2xw etc

Number 33 on Diagram above

Price Is For Qty 1 But 4 Are Required In The TZR250

Replaces Yamaha Part Numbers 93210-27778


Price: 2.99 (3.59 Including VAT at 20%)


Quantity:






Yamaha TZR 250 Power Valve Service Kit

Yamaha TZR 250 Power Valve Service Kit

Yamaha TZR250 Power Valve Service Kit, Fits All Years Of The TZR 250 1KT 2MA 2XW ETC

If You Are Getting Oil Splurge Out Of Your Power Valve Area Chances Are Your Power Valve Seal And O-Rings Have Gone Hard. They Are Subject To A Lot Of Heat And Spent Two Stroke Oil So Do Get A Very Hard Time, This Can Lead To Exhaust Gases Escaping That Can Change How The Engine Runs.

We Have Put Together This Kit That Contains 4 O-Rings (one for each end of the bushes) And 3 Shaft Seals.
Price: 26.94 (32.33 Including VAT at 20%)


Quantity:






Yamaha TZR 250 Boyesen Reed Valves

Yamaha TZR 250 Boyesen Reed Valves

Set Of Boyesen Dual Stage Reed Petals To Fit The Yamaha TZR250 2MA 1KT

You Get A Full Set To Fit Both Cylinders

721

More...
Price: 54.16 (64.99 Including VAT at 20%)



Quantity:






Yamaha TZR250 NGK Spark Plug

Yamaha TZR250 NGK Spark Plug

Standard Spark Plug For The Yamaha TZR250


Price: 4.41 (5.29 Including VAT at 20%)


Quantity:






Yamaha TZR250 NGK Racing Spark Plug

Yamaha TZR250 NGK Racing Spark Plug

NGK Racing Spark Plug For The Yamaha TZR250
Price: 8.07 (9.68 Including VAT at 20%)


Quantity:




People who bought this item also bought:
1. Yamaha Power Valve Service Kit TZR125 2RH UK Bike
2. Yamaha TZR125 Rear Sprocket 1987-1992
3. Yamaha TZR125 Front Sprocket 1987-1992



Customer Reviews

  this is the one  I only ever fit this plug in my Mito evo 1   (28/08/2012) Jason - swadlincote



Yamaha TZR250 NGK IRIDIUM Spark Plug

Yamaha TZR250 NGK IRIDIUM Spark Plug

NGK IRIDIUM Spark Plug For The Yamaha TZR250.

Enhanced Igniton Efficiency, Better Acceleration,Faster Starting & Smother, Running, Longer Life
Price: 14.14 (16.97 Including VAT at 20%)


Quantity:






NGK Spark Plug Cap Black

NGK Spark Plug Cap Black

NGK Spark Plug Cap For Use With Screw On Terminal Post Black

Suitable For Both 2T And 4T Engines

LB05E Black
Price: 5.74 (6.89 Including VAT at 20%)



Quantity:






NGK Spark Plug Cap Black No Terminal Post

NGK Spark Plug Cap Black No Terminal Post

NGK Spark Plug Cap For Use Without Screw On Terminal Post Black

Suitable For Both 2T And 4T Engines

LB05F Black
Price: 5.97 (7.16 Including VAT at 20%)



Quantity:






NGK Spark Plug Cap Racing Red

NGK Spark Plug Cap Racing Red

Racing Spark Plug Cap Rubber Sheathed For Added Water Proofing

Red

For Use With Screw On Terminal Post Only


Price: 5.74 (6.89 Including VAT at 20%)



Quantity:




People who bought this item also bought:
1. Suzuki RGV 250 Head Gasket Genuine Suzuki Part
2. Suzuki RGV250 Cylinder Head Dowel
3. NGK Spark Plug BR10EG



Customer Reviews

    great cap   (10/07/2014) -
