Suzuki GT500 Bottom End Engine Parts







Suzuki GT500 Crankshaft Rebuild Service

Suzuki GT500 Crankshaft Rebuild Service

We Carry Out Crankshaft Rebuilds For The Suzuki GT500 Here At Pjme

The Suzuki GT 500 Like Most 2 Strokes Has A Pressed Together Crankshaft Assembly, But Unlike Most Two Stroke Cranks The Gt500 Crank Is Quite A Big Heavy Crank That Requires Time Most Importantly Experience To Build It Correctly.

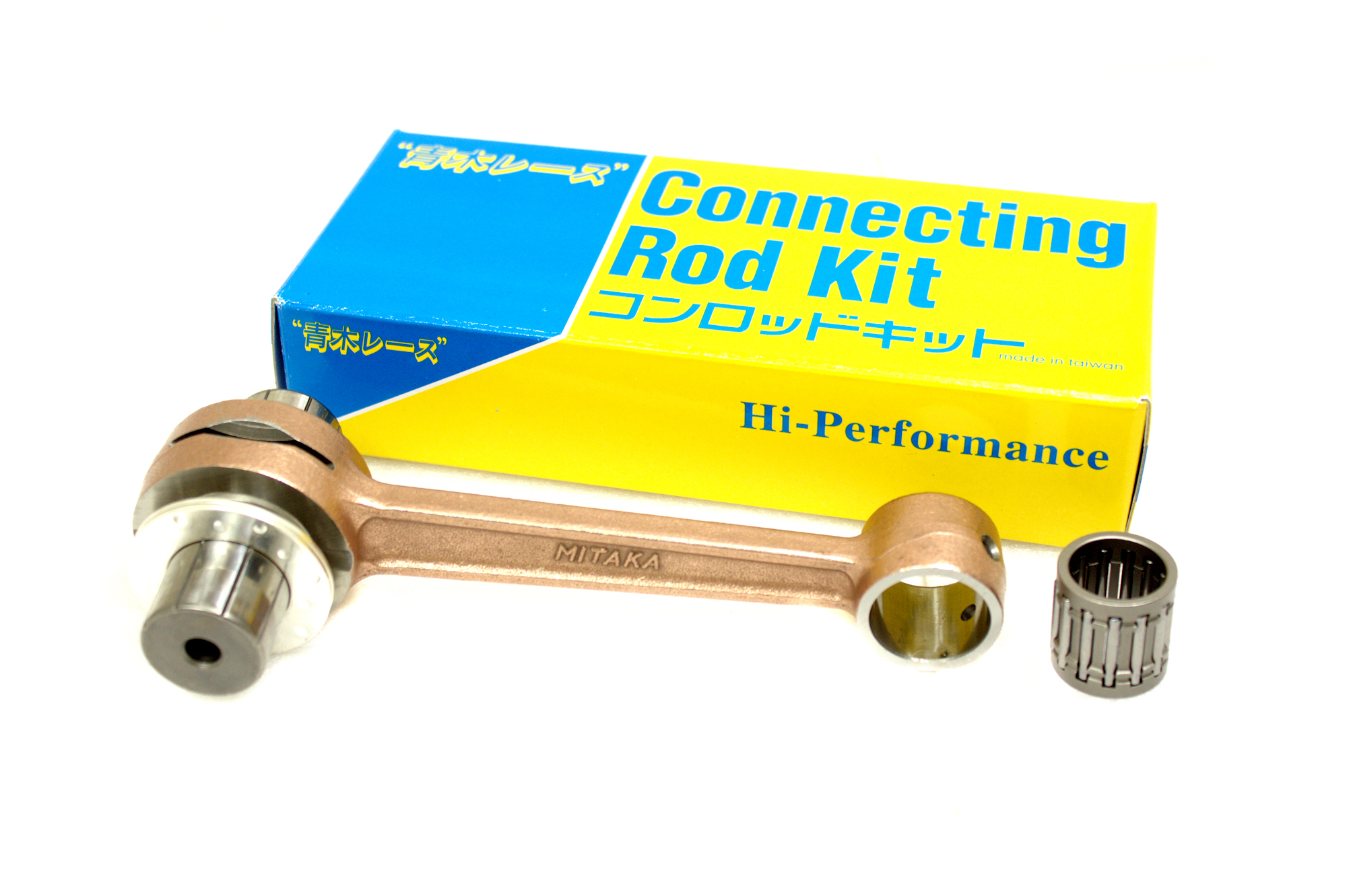

With A Standard Crankshaft Build We Strip All The Components Of The Crankshaft Clean And Inspect For Cracks Then Replace The Following Parts, Con Rods, Big End Bearings, Thrust Washers, Small End Bearing, All 4 Main Bearings And 5 Crank Seals. All The Parts Are New And Are High Quality Parts Made In Ie Koyo / Hic Bearings, Mitaka Brand Con Rods Ars Seals From Japan Etc.

We Then Build The Crank On A Jig Which Ensures The Crank Is Phased, The Whole Assembly Is Then Trued By Hand. The Crank Is Ready To Be Dropped Into The Crankcases.

The Price For A Standard Crank Rebuild Is £599 + Vat

Please Get In Touch If You Need This Service.Telephone: 01902 307457

Mobile Number For WhatsApp Messaging: 07884274838

Email Us Click Here websales@pjme.co.uk

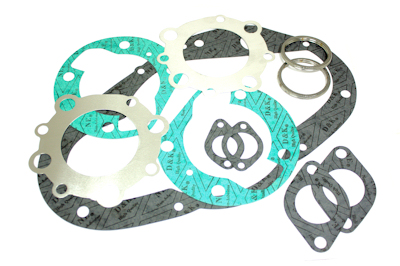

Suzuki GT500 Full Gasket Set

Suzuki GT500 Full Gasket Set

Full Gasket Kit To Fit The Suzuki GT 500 Suzuki T500 Years 1967-1978

Photo Is Of the Actual Gasket Set


Price: 20.77 (24.92 Including VAT at 20%)


Quantity:
